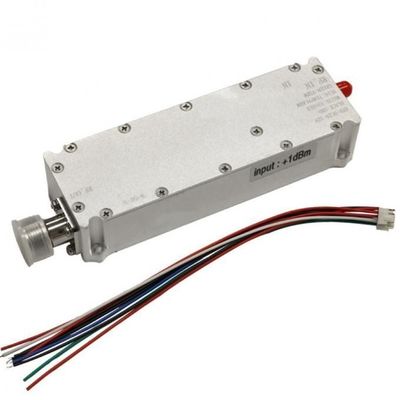

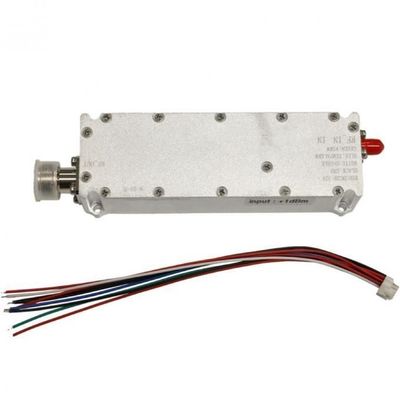

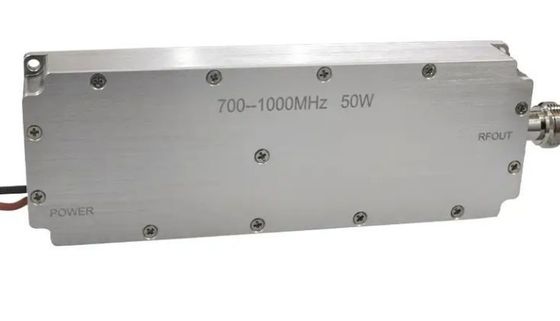

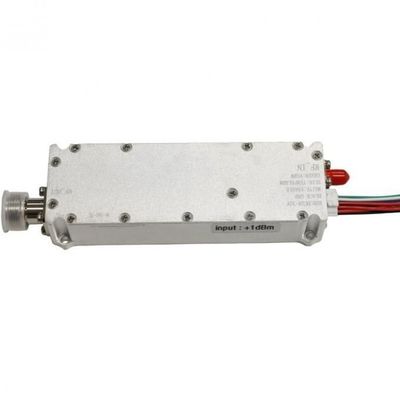

RF Amplifier Module For Autel Mavic 3 Counter Fpv C-Uas 840-930m 50W

MOQ:	1 piece
Price:	Negotiable
Payment Terms:	T/T, PayPal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model NO.:

PF-DM014

Power Supply:

50W

Saturated Output Power:

47±1dBm @Input=3~5dBm

Gain:

45±2dB

Supply Current:

≤4A

Working Voltage:

DC+32V

Temperature Protection(Warn):

Temperature Protection 90 Degrees(See Pin8)

Vswr Protection(Warn):

Reverse Power 15W Protection

Weight:

350g

Dimensions:

120*42*24.5mm

Price:

$235.00/Cases 1-49 Cases

Delivery Time:

5-8 Workdays

Supply Ability:

5000PCS Per Month

Transport Package:

Carton

Specification:

120*42*24.5mm

Trademark:

Origin:

China

Highlight:

Fpv Equipment RF Power Amplifier Module, 50W RF P

Product Description

RF Amplifier Module for Autel Mavic 3 Counter Fpv C-Uas 840-930m 50W

Specification
RF Amplifier Module for Autel Mavic 3 Counter Fpv C-Uas 840-930m 50W

Item name	Technical parameters
Working frequency	1160-1300MHz
Saturated output power	47±1dBm @input=3~5dbm
Gain	45±2dB
In-band fluctuation	≤2.0dB
Out-of-band spurious	9kHz~1GHz:≤-36dBm/30kHz 1GHz~12.75GHz:≤-30dBm/30KHz
Input VSWR/Out VSWR	≤2
Gain temperature stability	≤±1.5dB
Working voltage	DC+32V
Temperature Protection(Warn)	Temperature protection 90 degrees(see PIN8)
VSWR Protection(Warn)	Reverse Power 15W protection
Working current	≤4A
Power supply monitoring interface	Power supply: 2*4PIN PIN1:DC+28V;PIN2:DC+28V;PIN3:DC+28V;PIN4:PA_EN;PIN5:GND;PIN6:GND;PIN7:GND;PIN8:TEMPALARM(0V-ALARM;3.3V-Normal)
Iinput RF port	SMA-KFD
Output RF port	N-KFD
Dimensions	120×42×24.5mm
Working temperature	-20~+55ºC

RF Amplifier Module for Autel Mavic 3 Counter Fpv C-Uas 840-930m 50W

FAQ
1.Question : Why choose us ?
Answer : We have 6 years experience on drone business and one stop solutions of drone , especially on security .

2.Question : What is the minimum order quantity(MOQ) ?
Answer : No quantity limited , sample order or small order is acceptable.

3.Question : Could you offer wholesale price ?
Answer : Supportive,and wholesale price is better.

4.Question : How long is your delivery time ?
Answer : Generally 1-3 working days if stock available . Or need extra 3 working days to prepare goods .

5.Question : What is your product quality ?
Answer : Our raw materials purchased from qualified suppliers . And we have very strict qc standard to assure our final products meet your requirements .

6.Question : Can you print my own logo on the products ?
Answer : Yes , logo,packing design and other oem services are available .
We will prepare artwork for visual confirmation , then sample confirm finally bulk production .

7.Question : What's the payment terms ?
Answer : T/T , Western union , Paypal , Alipay and so on.
