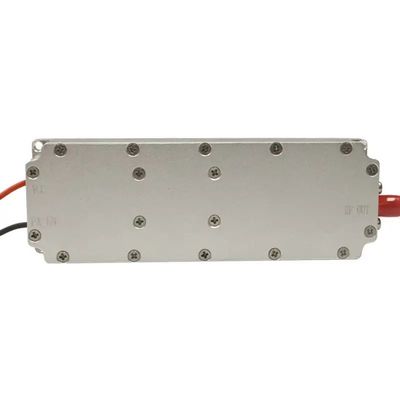

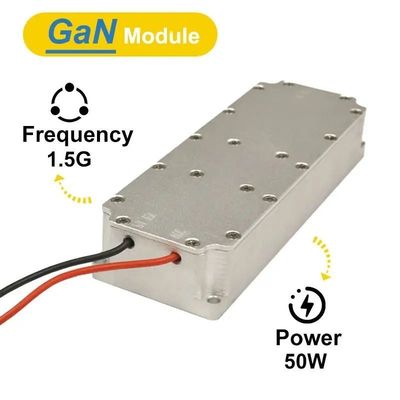

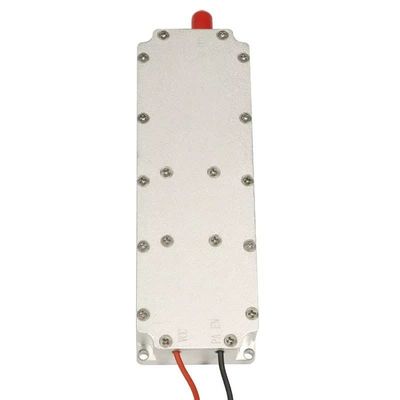

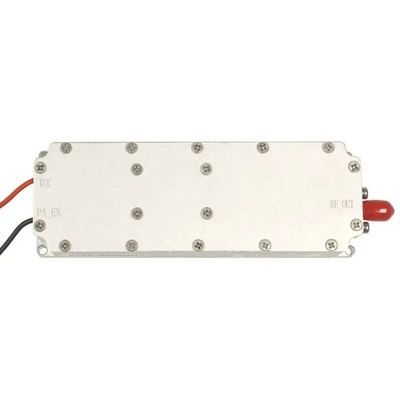

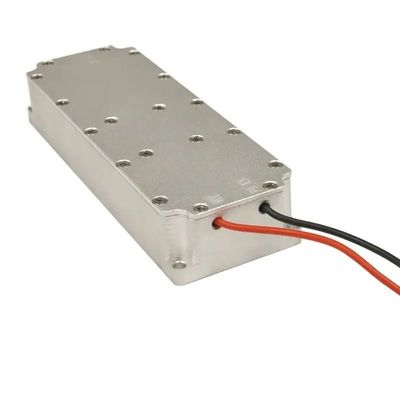

1.5g 1560-1620MHz 50W RF Amplifier Module Anti Uav Module With RS485 Communication

MOQ:	1 piece
Price:	Negotiable
Payment Terms:	T/T, PayPal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model NO.:

PF-MD26Y

Key Words:

1.5g 50W GaN Module

Input/Output Vswr:

1.5dB

Frequency Range:

1.5g(1164-1250MHz)

Max Gain:

50 DBm

Operating Voltage:

24V-28V

Supply Voltage:

DC 24-28V

RF Interface:

N Type

Operating Temperature:

-20ºC-80ºC

Weight:

160 G

Special:

GaN Module Anti Fpv

Power:

50W(47dBm)

Transport Package:

Carton

Specification:

38*112*19.5mm

Trademark:

Origin:

China

Highlight:

RS485 Communication RF Amplifier Module

RS485 Communication Anti Uav Module

1620MHz RF Amplifier Module

Product Description

1.5g 1560-1620MHz 50W GaN Module Customized Portable RF Power Amplifier Module with RS485 Communication for Anti Uav

Specification

1.The power amplifier uses domestic core key components and can operate normally at low temperatures of -40°C.
2.This document stipulates the radio frequency and monitoring technical indicators of the 1.2G 50W power amplifier module, the definition of each port of the module, the appearance and structure of the module, etc.
3.This document applies to all aspects of product design, verification, production and quality inspection of the 1.2G 50W power amplifier module.

Product Overview

Test Item		indicator	Remark
Frequency Range		1.5Ghz	Built-in interference source
Working Voltage		30V	24-32V
Max Output Power		47dBm	1.5G 50W
Working Efficiency		≥60%
Gain		47dbi	peak-to-peak value
Passband Riplpe		≤2dB	peak-to-peak value
High-Low Temperature Test	Working Temperature(ºC)	-10~+55ºC	It can start at low temperatures
	Gain Stability	±1.5 @-40ºC~+55ºC
	Power Stability	±1.5 @-40ºC~+55ºC
Power supply requirements		≥3.7A	Continuous wave output 50W
Power supply interface			Red + and black -
Enable			White line high level on, low level off
RF Connector		SMA	SMA external screw base
Size		37.311219.5mm	Excluding SMA
Weight		160g

FAQ
1.Question : Why choose us ?
Answer : We have 6 years experience on drone business and one stop solutions of drone , especially on security .

2.Question : What is the minimum order quantity(MOQ) ?
Answer : No quantity limited , sample order or small order is acceptable.

3.Question : Could you offer wholesale price ?
Answer : Supportive,and wholesale price is better.

4.Question : How long is your delivery time ?
Answer : Generally 1-3 working days if stock available . Or need extra 3 working days to prepare goods .

5.Question : What is your product quality ?
Answer : Our raw materials purchased from qualified suppliers . And we have very strict qc standard to assure our final products meet your requirements .

6.Question : Can you print my own logo on the products ?
Answer : Yes , logo,packing design and other oem services are available .
We will prepare artwork for visual confirmation , then sample confirm finally bulk production .

7.Question : What's the payment terms ?
Answer : T/T , Western union , Paypal , Alipay and so on.
1.5g 1560-1620MHz 50W GaN Module Customized Portable RF Power Amplifier Module with RS485 Communication for Anti Uav
