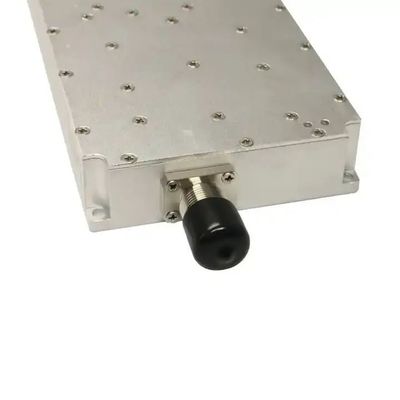

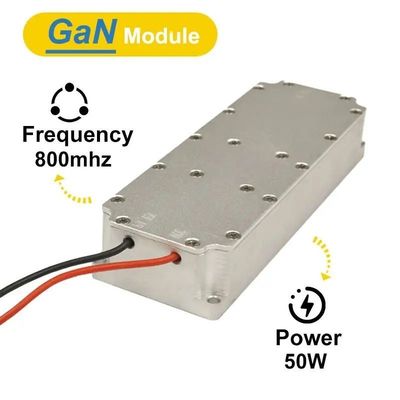

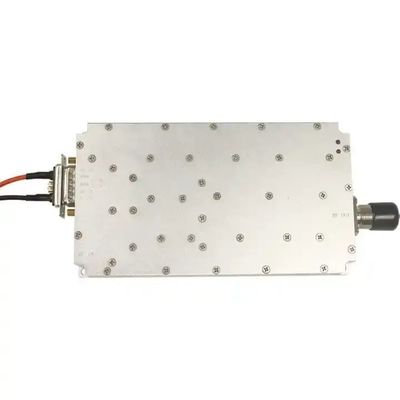

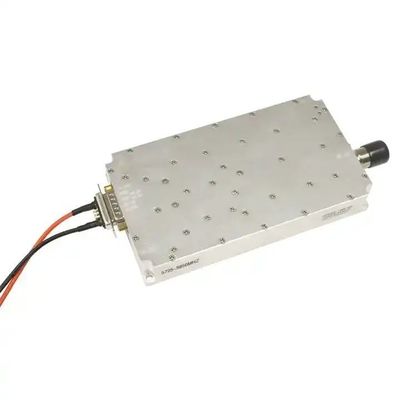

800MHz 50W RF Power Amplifier Module For Anti Drone System Autel Mavic 3 Counter Fpv C-Uas

800MHz 50W RF Power Amplifier Module For Anti Drone System Autel Mavic 3 Counter Fpv C-Uas

Brand Name:	OEM
MOQ:	1 Piece
Price:	Negotiable
Delivery Time:	1-3 Working Days
Payment Terms:	T/T,PayPal,Negotiable

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model NO.:

PF-AM084

Condition:

New

Type:

Drone Uav Protect Module

Support Network:

All

Information Content:

All

Product Name:

RF GaN Power Amplifier Module

Frequency:

800MHz

Output Power:

50W

Gain:

47dBm

Voltage:

24-32V

Product Weight:

1.5kg

Intra-Band Fluctuations:

≤2.5 (Peak-to-Peak Value)

In-Band Group Delay:

≤1us

Input Voltage Standing Wave Ratio:

≤1.35

Transport Package:

Carton

Specification:

38*112*19.5mm

Trademark:

Origin:

Guangdong, China

Packaging Details:

Standard Package

Supply Ability:

10000 Sets / Month

Highlight:

800MHz RF Power Amplifier Module

800MHz Anti Drone Module

50W Anti Drone System Module

Product Description

Padi Fly main business includes UAV detector module, handheld detection, backpack detection, vehicle detection, UAV accessories, etc.

800MHz 50W RF Detect Module GaN Module for Anti Drone System Autel Mavic 3 Counter Fpv C-Uas

Frequency	860-930Mhz
Output Power(dBm)	50W
In-band group delay	≤1us
Gain	45±1.0,45±1.0 (external input 5dbm, power amplifier output 50dbm)
In-band fluctuation (dB)	≤2.5 (peak-to-peak value)
Input voltage standing wave ratio	≤1.35
Output voltage standing wave ratio	≤1.3
Supply voltage Typical	+30Vdc Range: 24-36V
Supply current	+30Vdc@100W≤5.5A
Output RF connector	N-50KFD
Size	170×94×26.5mm (excluding connectors)
Input signal source	Built-in high-efficiency modulation sweep signal source, which can also be connected to external sources

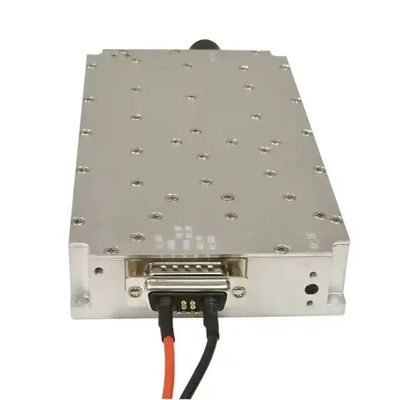

1 7W2 male socket 2 Feedthrough capacitors (from top to bottom)	1: A1 is the 30V power input, and A2 is GND; 2: The first pin of 7W2 is the PA_SW power amplifier enable; 3: The upper through-core capacitor is SRC_SW (internal signal source switch), high-on, low-off; 4: The feedthrough capacitor below is PS_SW (internal and external source switch), high: external source; low: built-in source;

800MHz 50W RF Power Amplifier Module For Anti Drone System Autel Mavic 3 Counter Fpv C-Uas 7

Padi Fly Technology Co. Ltd specializes in the field of advanced technology.

Our company is located in the vibrantcity of Shenzhen,known as a hub of innovation andtechnology in China.
With over 3000 square meters of plant space, we specialize in the design, development, and distribution of FPV drones along with drone countermeasure solution.
We are known for our innovation, quality, and commitment to enhancing the user experience.

800MHz 50W RF Power Amplifier Module For Anti Drone System Autel Mavic 3 Counter Fpv C-Uas 8

Our Business Range for FPV drone accessories:
We can provide include: Image transmission, motor, carbon fiber frame, flight control, electrical regulation, antenna, remote control, propeller, charger, etc..
We also provide the industry's professional OEM and ODM technology and services.

800MHz 50W RF Power Amplifier Module For Anti Drone System Autel Mavic 3 Counter Fpv C-Uas 12

Q:Why choose PDFLY?

A:1. From real factory: cheaper price, better quality, faster delivery.

2. Quality assurance: Ship after successful testing.

3. After-sales: Professional team to solve problems and technical support.

Q:How can we guarantee quality?

A:1.Always a pre-production sample before mass production;

2.Always final Inspection before shipment;

3.Professional sales staff will communicate with you to confirm every link

Q:What's the lead time?

A:Sample needs 3-7 days, mass production needs 7-10 days, according to your order requirements & volumes.

Q:How to place an order from you?

A:Please send the products you like to us and our professional sales will contact with you within 24 hours to confirm the details of the products and negotiate. After you confirm the order, we will guide you through payment and arrange delivery, tell you the tracking number and help track the logistics.

We look forward to your comments on our products and services.
