| Brand Name: | Pdfy Fly |
| MOQ: | 1 piece |
| Price: | Negotiable |
| Payment Terms: | T/T, PayPal |

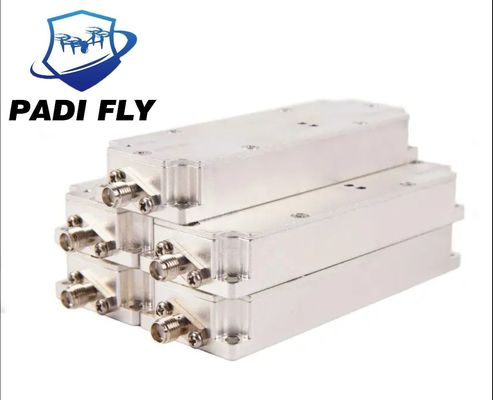

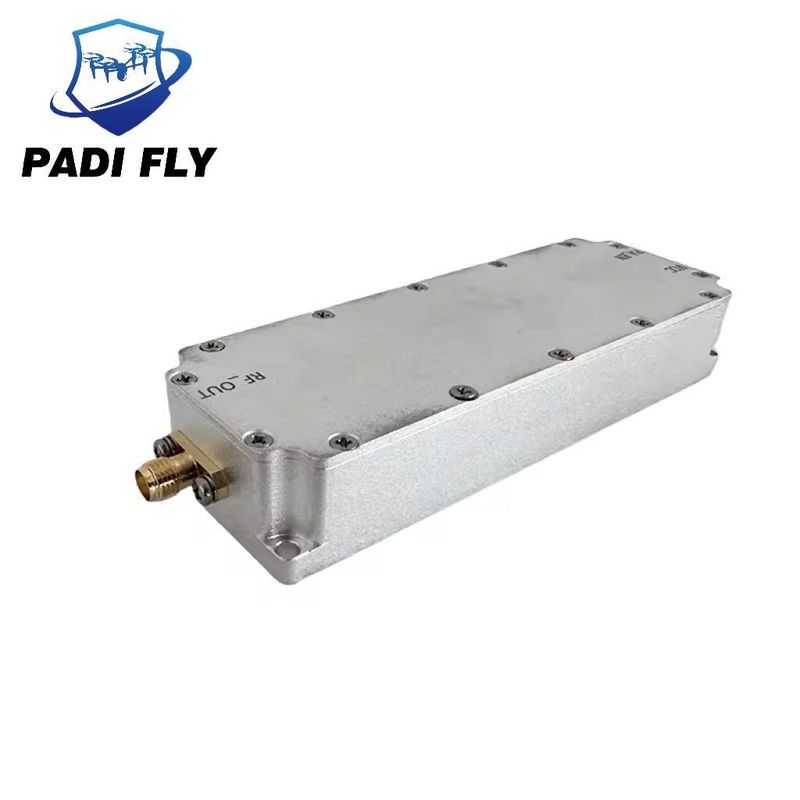

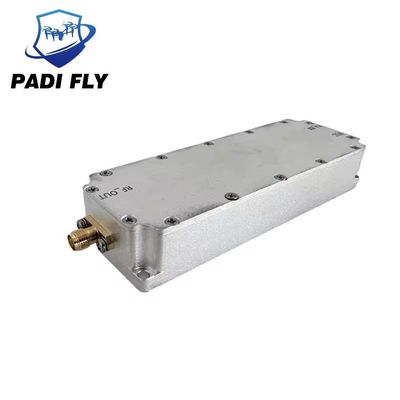

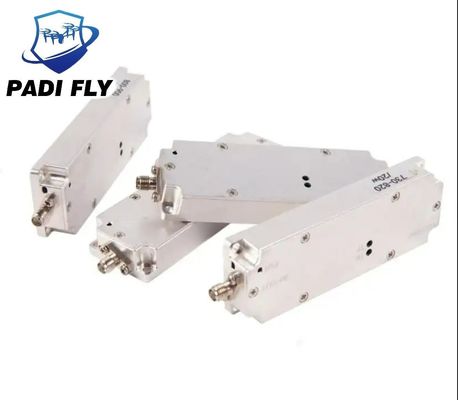

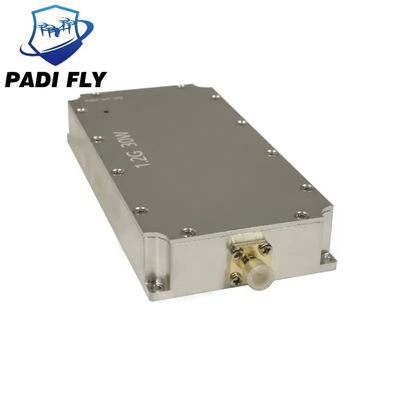

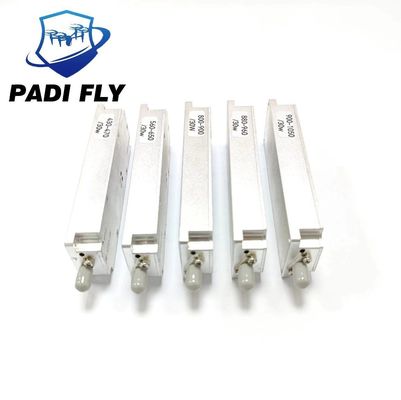

433MHz 100W GaN RF Amplifier Drone Counter Module for Anti Drone System Fpv Detection
|
Frequency
|
428-438Mhz
|
|
Output Power(dBm)
|
100W(50dBm)
|
|
In-band group delay
|
≤1us
|
|
Gain
|
45±1.0,45±1.0 (external input 5dbm, power amplifier output 50dbm)
|
|
In-band fluctuation (dB)
|
≤2.5 (peak-to-peak value)
|
|
Input voltage standing wave ratio
|
≤1.35
|
|
Output voltage standing wave ratio
|
≤1.3
|
|
Supply voltage Typical
|
+30Vdc Range: 24-36V
|
|
Supply current
|
+30Vdc@100W≤5.5A
|
|
Output RF connector
|
N-50KFD
|
|
Size
|
170×94×26.5mm (excluding connectors)
|
|
Input signal source
|
Built-in high-efficiency modulation sweep signal source, which can also be connected to external sources
|
|

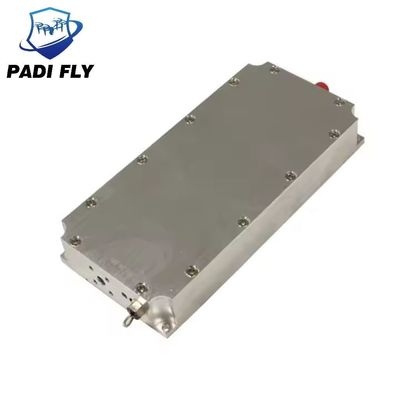

1 7W2 male socket
2 Feedthrough capacitors (from top to bottom) |
1: A1 is the 30V power input, and A2 is GND;
2: The first pin of 7W2 is the PA_SW power amplifier enable; 3: The upper through-core capacitor is SRC_SW (internal signal source switch), high-on, low-off; 4: The feedthrough capacitor below is PS_SW (internal and external source switch), high: external source; low: built-in source; |
Welcome to Shenzhen Padi Flying Intelligent Technology Co., Ltd: Your Partner in Drone Security. We are a leading provider of comprehensive solutions in the anti-drone industry, dedicated to safeguarding airspace and critical infrastructure from unauthorized drone activity.
Why Choose Us:
Experience: With years of experience in the anti-drone industry, we have a proven track record of success.
Expertise: Our team consists of industry experts who are passionate about drone security and dedicated to providing the best solutions.
Trust: We have earned the trust of our clients through our commitment to quality, innovation, and exceptional customer service.
Choose Padi Flying Intelligent Tech Co., Ltd, we believe in a world where drone technology is used responsibly and safely. We invite you to explore our solutions and join us in
our mission to secure the skies
1.Question : Why choose us ?
Answer : We have 6 years experience on drone business and one stop solutions of drone , especially on security .
|
|
