Foxeer Reaper 3W 80CH VTx Video Transmitter 4.9~6G High Power Remote Control Built-in Mic for RC Drones Kits Security Protection

Brand Name:	Foxeer
Price:	CN¥421.44/pieces 1-99 pieces

Detail Information

Product Description

Detail Information

Place of Origin:

China

Application:

Public Places

Feature:

Durable, Remote Control

Product Name:

Foxeer 4.9~6G Reaper Extreme 3W 80CH

Size:

38*29.2*11.5/cm

Highlight:

Remote Control Foxeer Reaper 3W VTx

High Power Foxeer Reaper 3W VTx

80CH Foxeer Reaper 3W VTx

Product Description

Name	Reaper 3W V2
Input Voltage	9~36V
Output Voltage	5V
Channels	80CH
Power	25mW/200mW/500mW/1.5W/3W
Pit	Double click to enter
Fan	Yes
Weight	15.2g
Size	3829.211.5mm
Consumption	1.4A/10V
Package Includes	1 x VTx; 1 x silicon cable;

Band	CH1	CH2	CH3	CH4	CH5	CH6	CH7	CH8
Band A	5865	5845	5825	5805	5785	5765	5745	5725
Band B	5733	5752	5771	5790	5809	5828	5847	5866
Band E	5705	5685	5665	5645	5885	5905	5925	5945
Band F	5740	5760	5780	5800	5820	5840	5860	5880
Band R	5658	5695	5732	5769	5806	5843	5880	5917
Band H	5653	5693	5733	5773	5813	5853	5893	5933
Band L	5333	5373	5413	5453	5493	5533	5573	5613
Band U	5325	5348	5366	5384	5402	5420	5438	5456
Band O	5474	5492	5510	5528	5546	5564	5582	5600
Band X	4990	5020	5050	5080	5110	5140	5170	5200

the frequencies and power levels

Long press the "KEY" button until the Red LED (PWR) is constant on, , then on again, release the button the all

frequencies and power levels, flashed Red LED means in ed status, constant Red LED means in locked status.

PIT Mode On/

Double-click the "KEY" button to turn on/ the PIT Mode. Red LED (PWR) means PIT mode on; Red LED (PWR) on means PIT mode

.In PIT mode, VTx outpout low power.

Note:

If tramp cable is connected, button will not work, can not adjust frequency and power, controller will take over.

BetaFlight only can accept 64 channels at most, so the O band is removed from the frequency table default.

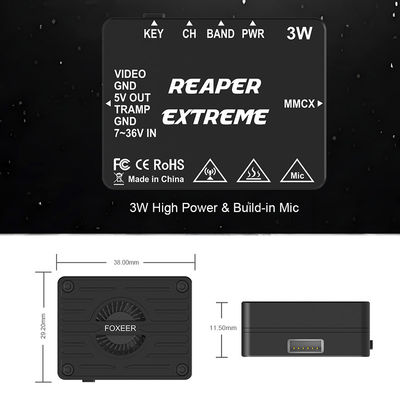

3W High Power
Build-in Mic

Heat Dissipation Shll

Great filtering circuit, Strong Anti-interference Ability

We still have more Cost-effective fpv drones and parts

FPV drone source factory, Supports customization

FPV drone spare parts, one-stop supply
