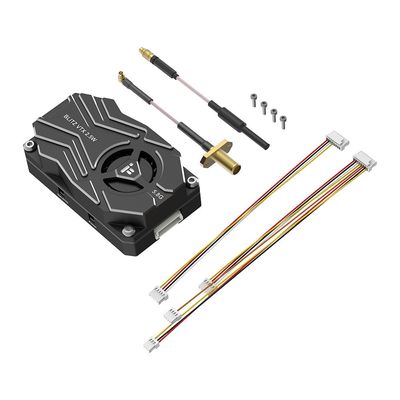

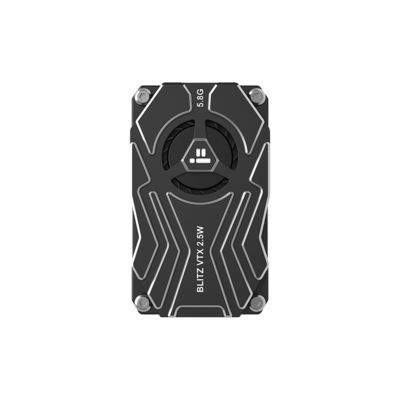

BLITZ Whoop 5.8G 2.5W VTX with 40 Channels Output Power RC FPV Accessories New Video Transmission Security Protection Product

Brand Name:	Flyingto
MOQ:	2 pieces
Price:	CN¥357.15/pieces 2-49 pieces

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Weight:

32g

Color:

Black

Product Name:

Video Transimission

Highlight:

BLITZ 5.8G RC FPV Accessories VTX

2.5W RC FPV Accessories VTX

RC FPV Accessories VTX

Product Description

Specification

item	value
Input voltage	7V～34V
Interface	MMCX
Power levels	PIT/25mW/400mW/1000mW/2500mW
Channels	40 (including Raceband)
Mounting pattern	25.5x25.5mm/Φ1.6
Lightweight	32g (excluding antenna)
VTX telemetry	IRC Tramp
Betaflight IRC Tramp Configuration	Please download the attached VTX table for Betaflight
RC Tramp VTX table values	25mW/400mW/1000mW/2500mW

Features

Built-in microphone
4 Power levels up to 2500mW;
40 Channels (including Raceband)
Fast frequency lock, no startup interference with other pilots
Built-in output power self-check functionality
The CNC cooling casing, along with an integrated cooling fan, offers a dual heat dissipation effect.

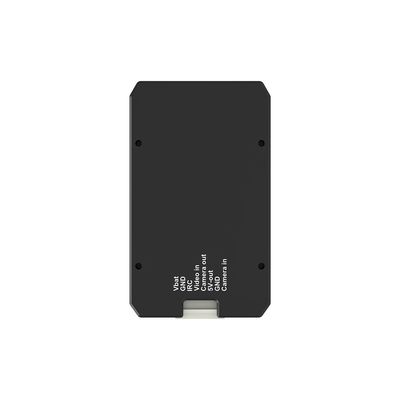

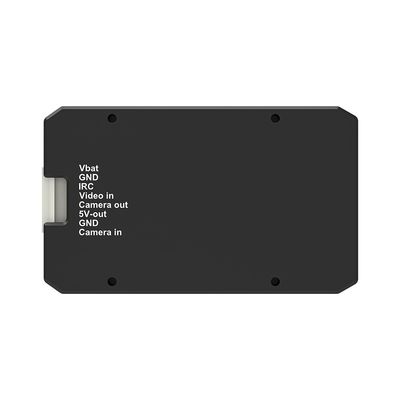

Ports

VBAT			2-8S，7-34V DC Positive Input
GND			Negative
5v out			5v Voltage Output
IRC			IRC Tramp Signal Input
GND			Negative
Video in			Video Signal Input
Camera in			Camera video Input
Camera out			Camera video output

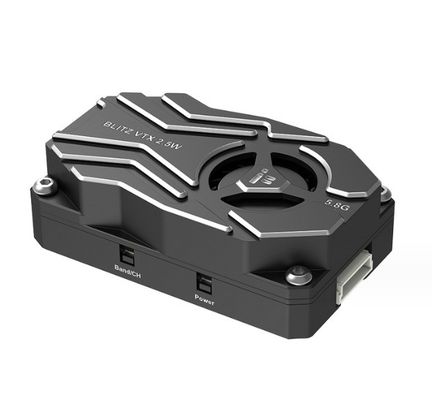

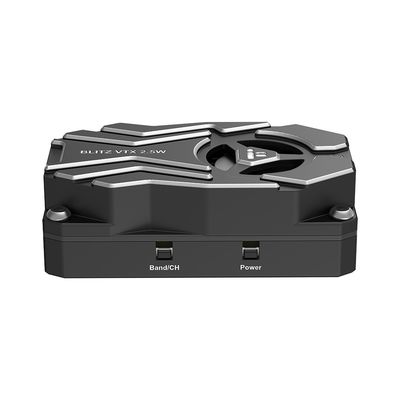

LED Indicator and Function Button

Power Button:
Press and hole for 2s: Enter or exit PIT mode, solid green light indicates entering PIT mode
Short press: Green light (output power): The number of LED ﬂashing indicates the VTX output power. 1 ﬂash=25mW, 2 ﬂashes=400mW,3
ﬂashes=1000mW, 4 ﬂashes=2500mW. Short press to change output power.
Band and Channel Button
Press and hole for 2s: Red(BAND): The number of LED ﬂashing indicates the BAND A-R. Press and hold for 2s to switch Band.
Short press: Blue(CH): The number of LED ﬂashing indicate the channel 1 to 8. Short press to switch the Channel.

Attention

Please read the instructions for proper wiring before use.
It is recommended that before switching on the power, make sure that the antenna has been installed, it can extend the life of the module.
It is recommended to ensure the correct voltage range and the correct positive and negative polarity before switching on the power to avoid burning the components.
Please keep enough space when you install the VTX to ensure air convection around the module for heat dissipation. Otherwise, the module will enable overheat protection and the power transmission will be reduced or even switched off
