New 5.8g 2.5W FPV VTX Video Transmitter with Built-in Microphone Stable Long Range RC Drones Accessories

Name: New 5.8g 2.5W FPV VTX Video Transmitter with Built-in Microphone Stable Long Range RC Drones Accessories
Brand: Padi Fly Technology Co., Ltd
Price: 101.00 USD
Availability: InStock

MOQ:	10 pieces
Price:	CN¥192.86/pieces 10-199 pieces

Detail Information

Product Description

Detail Information

Brand Name:

PADI FLY

Compatible Brand:

DJI

Private Mold:

Place Of Origin:

Guangdong, China

Material:

CNC

Two Channels Available:

5.8G2.5W

Input Voltage:

DC7-36V (2-8s Batter)

Working Current:

120-860mA (12V / 25mw-2500mW)

Operating Temperature:

-10 ~ 60℃

Video Input Impedance:

75Ω

Size:

39.5x27.5x14.5mm

Antenna Interface:

MMCX

Standard:

NTSC/PAL

Protocol:

IRC Tramp

Output Power:

25mW / 400mW / 800mW / 1600mW / 2500mW/Pit

Highlight:

Built-in Microphone FPV VTX

Stable Long Range FPV VTX

RC Drones Accessories FPV VTX

Product Description

Padi Fly main business includes UAV detector module, handheld detection, backpack detection, vehicle detection, UAV accessories, etc.

Product Description

5.8G 2.5W Video Transmitter

Features:
Equipped with high and stable output power for long-range transmission.
It features six-switch transmitting power: PIT/25mW/400mW/800mW/1500mW/2500mW,
enabling quick frequency locking without disturbing colleagues.

Features a self-check function for output power.
Supports full-standard video formats: NTSC/PAL.

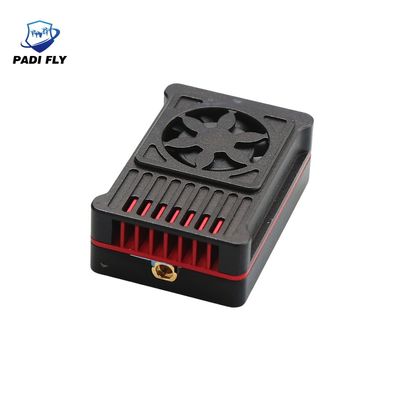

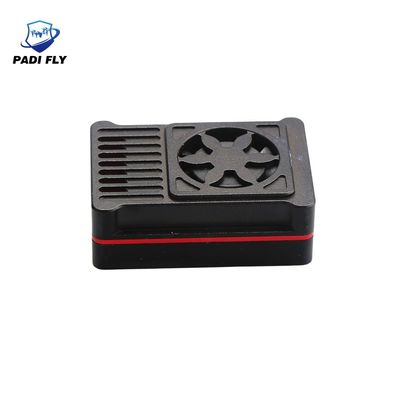

Enclosed in a robust, all-metal CNC shell, the transmitter offers excellent anti-dust and
explosion-proof properties and good heat dissipation for stable power.

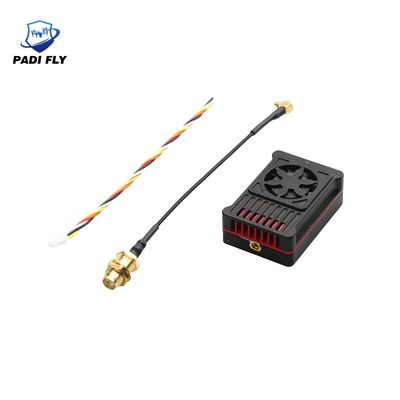

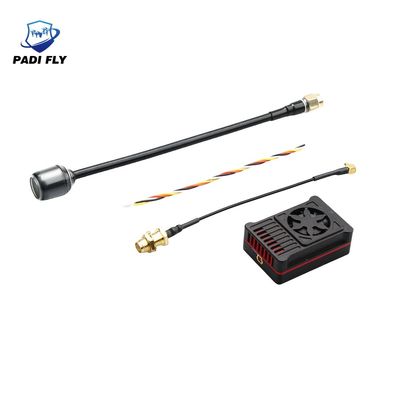

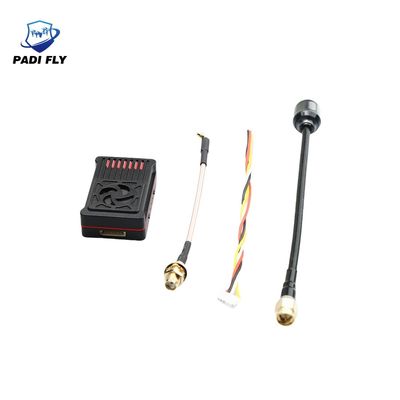

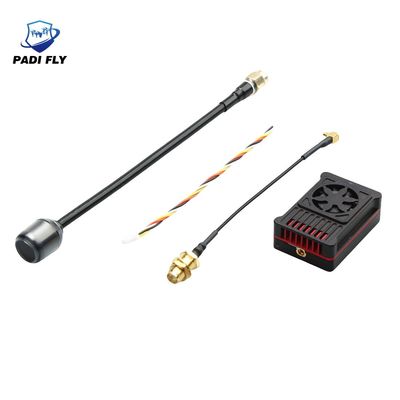

Package Includes: 1* 5.8G 2.5W 48CH VTX

Specification

Product Name	5.8G 2.5W Video Transmitter
Two channels available	5.8G2.5W
Input voltage	DC7-36V (2-8s Batter)
Working current	120-860mA (12V / 25mw-2500mW)
Operating temperature	-10 ~ 60℃
Video input impedance	75Ω
Antenna interface	MMCX
Standard	NTSC/PAL
Protocol	IRC Tramp
Installation hole position	25.5x25.5mm / ΦM2
Output power	25mW / 400mW / 800mW / 1600mW / 2500mW/Pit
Frequency point	48CH

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profile

Welcome to Padi Fly Technology Co., Ltd: Your Partner in Drone Security.

We are a leading provider of comprehensive solutions in the anti-drone industry, dedicated to safeguarding airspace and critical infrastructure from unauthorized drone activity. Why Choose Us: Experience: With years of experience in the anti-drone industry, we have a proven track record of success. Expertise: Our team consists of industry experts who are passionate about drone security and dedicated to providing the best solutions. Trust: We have earned the trust of our clients through our commitment to quality, innovation, and exceptional customer service. Choose Padi Flying Intelligent Tech Co., Ltd, we believe in a world where drone technology is used responsibly and safely. We invite you to explore our solutions and join us in. Our mission to secure the skies.

Certifications

FAQ

1.Question : Why choose us ?
Answer : We have 6 years experience on drone business and one stop solutions of drone , especially on security .

2.Question : What is the minimum order quantity(MOQ) ?
Answer : No quantity limited , sample order or small order is acceptable.

3.Question : Could you offer wholesale price ?
Answer : Supportive,and wholesale price is better.

4.Question : How long is your delivery time ?
Answer : Generally 1-3 working days if stock available . Or need extra 3 working days to prepare goods .

5.Question : What is your product quality ?
Answer : Our raw materials purchased from qualified suppliers . And we have very strict qc standard to assure our final products
meet your requirements .

6.Question : Can you print my own logo on the products ?
Answer : Yes , logo,packing design and other oem services are available .
We will prepare artwork for visual confirmation , then sample confirm finally bulk production .

7.Question : What's the payment terms ?
Answer : T/T , Western union , Paypal , Alipay and so on.
