Created with Pixso. PandaRC Mini VT5804-BAT Lite 5.8G High Power OSD Adjustment X8 RC Camera Ima Transmission Aerial Remote Control Remote Control

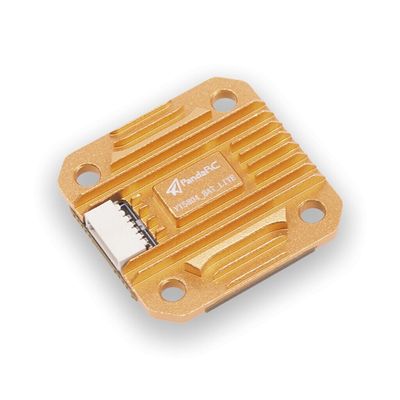

PandaRC Mini VT5804-BAT Lite 5.8G High Power OSD Adjustment X8 RC Camera Ima Transmission Aerial Remote Control Remote Control
  • name
  • name
  • name
  • name
  • name
  • name

PandaRC Mini VT5804-BAT Lite 5.8G High Power OSD Adjustment X8 RC Camera Ima Transmission Aerial Remote Control Remote Control

Brand Name: PandaRC
MOQ: 2 pieces
Price: CN¥214.29/pieces 2-49 pieces
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Product Name:
VT5804 1.3W VTX
Function:
PAL ELRS IRC Accessories
Highlight:

Aerial Remote Control

,

PandaRC VT5804-BAT Lite 5.8G

,

Remote Control 5.8G High Power OSD

Product Description
PandaRC VT5804-BAT Lite 5.8G Image Transmission 1.3W
PandaRC Mini VT5804-BAT Lite 5.8G High Power OSD Adjustment X8 RC Camera Ima Transmission Aerial Remote Control Remote Control 0
Product Model:VT5804 BAT LITE
RFOutpput Power:0-25-200-400-800-1300mW
Parameter adjustment way:key/OSD
Working Current:9V/750mA@1300mWChannel:40CH(A-B-E-F-R) nput Voltage:6-36V
AntennaInterface:MMCX
Installation Hole:20mm*20mm
Size:28mm*28mm*6mm
Weight:6g(Without antenna)
Video Format:NTSC/PAL

PandaRC Mini VT5804-BAT Lite 5.8G High Power OSD Adjustment X8 RC Camera Ima Transmission Aerial Remote Control Remote Control 1
Features:
High power: The osd adapter is made of high-quality materials, which can be used for a long time. Professional fitting design: The precision-fitting design of the osd adapter makes it suitable for all mounting hardware. Simple installation: The installation is very simple, you only need to install the osd adapter on the left and right sides of the osd.
PandaRC Mini VT5804-BAT Lite 5.8G High Power OSD Adjustment X8 RC Camera Ima Transmission Aerial Remote Control Remote Control 2
PandaRC Mini VT5804-BAT Lite 5.8G High Power OSD Adjustment X8 RC Camera Ima Transmission Aerial Remote Control Remote Control 3
PandaRC Mini VT5804-BAT Lite 5.8G High Power OSD Adjustment X8 RC Camera Ima Transmission Aerial Remote Control Remote Control 4
The selections in grey requires HAM license to operate legally Key adjustment mode 1.elect CH: Simple short press,change the CH(CH1-CH8)
2.Select FR: Press the button
3 times until blue light(FR)flashing.then short press again,change the FR(A-B-E-F-R).
4.Select Power: Press the button 6 times until red light(R)flashinghen short press again,change the Power(25-1300mW).
PandaRC Mini VT5804-BAT Lite 5.8G High Power OSD Adjustment X8 RC Camera Ima Transmission Aerial Remote Control Remote Control 5
1.Connect Video transmitter RX to Free Uart(TX)interface of flight control hardware. 2.Select the ports,set peripherals menu as the IRC port
3.Enter bataflight image transmission (vtx) interface (load from file) to import the official configuration file and save it. (the configuration file can be obtained by contacting the official QQ group of customer service goods)
PandaRC Mini VT5804-BAT Lite 5.8G High Power OSD Adjustment X8 RC Camera Ima Transmission Aerial Remote Control Remote Control 6
4.the OSD parameter adjustment interface,select “FEATURES” “VTX TR”to set the CH and Power,Selectwhtn finished
“SET-YES”
PandaRC Mini VT5804-BAT Lite 5.8G High Power OSD Adjustment X8 RC Camera Ima Transmission Aerial Remote Control Remote Control 7
