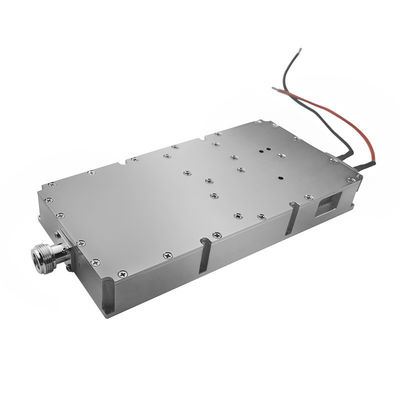

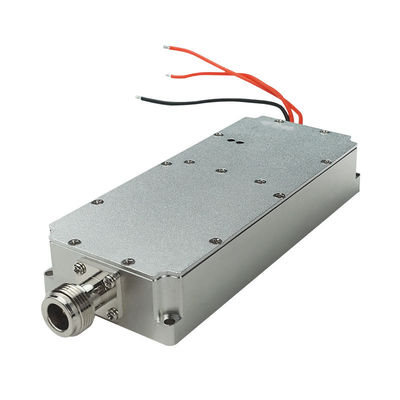

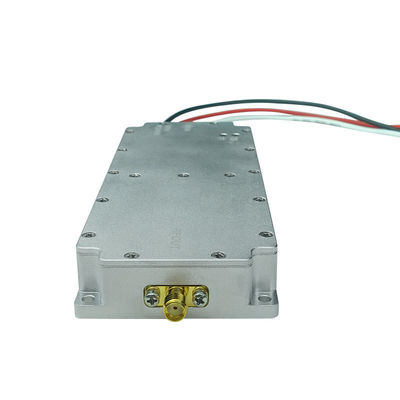

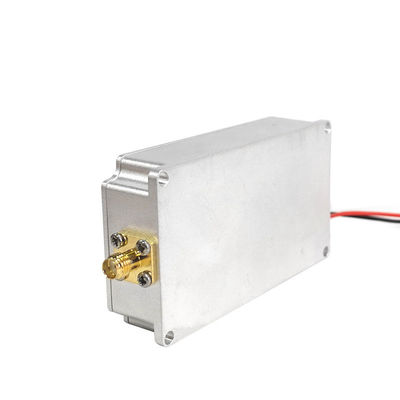

Ultra-high cost performance 50W 30W Low frequency rf power amplifier module Gan lora module

Ultra-high cost performance 50W 30W Low frequency rf power amplifier module Gan lora module

Brand Name:	OEM
MOQ:	1 Piece
Price:	Negotiable
Delivery Time:	1-3 Working Days
Payment Terms:	T/T,PayPal,Negotiable

Detail Information

Product Description

Detail Information

Place of Origin:

China

Type:

Rf Power Amplifier

Application:

Indoor & Outdoor, Public Places, Anti Drone

Feature:

Durable, Anti Drone

Whats App/we Chat:

86-13043476740/customized

Product Name:

Rf Power Amplifier

Usage:

Anti Drone System

Frequency Range:

Customized Frequency

Power:

10w 20w 30w 50w 100w 200w

Operating Voltage:

28-32V

Maximum Power Output:

47±0.5dBm

Gain:

42±1dB

In-band Fluctuation:

≤2dB

RF Output Connector:

S M A

Packaging Details:

Standard Package

Supply Ability:

10000 Sets / Month

Product Description

Padi Fly main business includes UAV detector module, handheld detection, backpack detection, vehicle detection, UAV accessories, etc.

Ultra-high cost performance 50W 30W Low frequency rf power amplifier module Gan lora module 1

Anti-UAV Jamming Module Introduction and Working Principle‌:

Anti-UAV jamming module is a special device that uses radio sig nal jamming technology to interfere with the communication link, navigation positioning or control system of the drone. Its working principle is mainly based on the coverage and interference characteristics of radio sig nals. By transmitting the same jamming signal as the working frequency band of the drone, the drone cannot receive or process instructions normally, thereby preventing it from flying or forcing it to land.
Specifically, the technologies that may be used in this module include frequency hopping communication, spread spectrum communication, anti-interference antenna, encrypted communication, and intelligent identification and interference suppression. The combined use of these technologies effectively improves the survivability and mission completion rate of drones in complex electromagnetic environments. For example, by interfering with the 2.4G and 5.8G frequency bands of the drone, it can lose the image transmission signal and return; if the 1.5G frequency band is further interfered, the drone can lose the GPS sig nal and make an emergency landing.‌

50W Interference Power Amplifier Technical Data Sheet
Radio Frequency Index
Test item					Technical parameters	Unit	Remark
Frequency Range					420-5850	MHz	Customized Frequency
Operating Voltage					28	V	28-32V
Maximum Power Output					47±0.5	dBm	50W@≤3.5A
Gain					42±1	dB	peak-to-peak value
In-band fluctuation					≤2	dB	peak-to-peak value
Spurious Emission	Operating In-band				≤15dBm/1MHz	dBm	Center Frequency add CW Signal to Maximum Power Output Test
	Operating Out-of-ba nd		9KHz~1GHz		No noise wave above normal base	dBm
			1G~12.75GHz			dBm
Output VSWR					≤1.30		No power up:Standard Grid Output -10dBm
					≤1.30		Power up:Dual Directional Coupler Test
high-low temperature test		Operating Temperature		Ambient	-10~+55	℃	Cold Start
		Gain Stability			±1.5 @-40℃~+55℃	dB
		Power Stability			±1 @-40℃~+55℃	dB
Power Supply Requirement					≥4A@+28Vdc;		Continuous Wave Output 50W
Power Supply Port					Power Cable:Red positive Black negative		Red positive Black negative
RF Output Connector					SMA		SMA External Screw Base

Ultra-high cost performance 50W 30W Low frequency rf power amplifier module Gan lora module 2

Ultra-high cost performance 50W 30W Low frequency rf power amplifier module Gan lora module 7

Padi Fly Technology Co. Ltd specializes in the field of advanced technology.

Our company is located in the vibrantcity of Shenzhen,known as a hub of innovation andtechnology in China.
With over 3000 square meters of plant space, we specialize in the design, development, and distribution of FPV drones along with drone countermeasure solution.
We are known for our innovation, quality, and commitment to enhancing the user experience.

Ultra-high cost performance 50W 30W Low frequency rf power amplifier module Gan lora module 8

Our Business Range for FPV drone accessories:
We can provide include: Image transmission, motor, carbon fiber frame, flight control, electrical regulation, antenna, remote control, propeller, charger, etc..
We also provide the industry's professional OEM and ODM technology and services.

Ultra-high cost performance 50W 30W Low frequency rf power amplifier module Gan lora module 12

Q:Why choose PDFLY?

A:1. From real factory: cheaper price, better quality, faster delivery.

2. Quality assurance: Ship after successful testing.

3. After-sales: Professional team to solve problems and technical support.

Q:How can we guarantee quality?

A:1.Always a pre-production sample before mass production;

2.Always final Inspection before shipment;

3.Professional sales staff will communicate with you to confirm every link

Q:What's the lead time?

A:Sample needs 3-7 days, mass production needs 7-10 days, according to your order requirements & volumes.

Q:How to place an order from you?

A:Please send the products you like to us and our professional sales will contact with you within 24 hours to confirm the details of the products and negotiate. After you confirm the order, we will guide you through payment and arrange delivery, tell you the tracking number and help track the logistics.

We look forward to your comments on our products and services.
