Anti Drone Module
Created with Pixso. Customized 5.8g 10W-100W with GaN, Lora, Dds Technolo Anti Detector Module for Anti Drone System RF Amplifier
Customized 5.8g 10W-100W with GaN, Lora, Dds Technolo Anti Detector Module for Anti Drone System RF Amplifier
  • name
  • name
  • name
  • name
  • name
  • name

Customized 5.8g 10W-100W with GaN, Lora, Dds Technolo Anti Detector Module for Anti Drone System RF Amplifier

Brand Name: Pdfy
MOQ: 1 piece
Price: Negotiable
Payment Terms: T/T, PayPal
Detail Information
Product Description
Detail Information
Place of Origin:
China
Model NO.:
PF-AM059
Type:
RF Power Amplifier Module
Support Network:
All
Information Content:
All
Product Name:
RF GaN Power Amplifier Module
Frequency And Power Customization:
Support
Frequency:
5.8g
Output Power:
10W
Max Gain:
40 DBm
Voltage:
24-32V
Product Weight:
136g
Transport Package:
Carton
Specification:
38*112*19.5mm
Trademark:
No
Origin:
Guangdong, China
Product Description
Customized 5.8g 10W-100W with GaN, Lora, Dds Technolo Anti Detector Module for Anti Drone System RF Amplifier
Product Parameters
Brand Name
PDFY
Working frequency
5725-5850MHz
Saturated output power
40±1dBm
Gain
42±2dB
In-band fluctuation
≤2.0dB

Out-of-band spurious
9kHz~1GHz:≤-36dBm/30kHz
1GHz~12.75GHz:≤-30dBm/30KHz
Input VSWR
≤1.5
Gain temperature stability
≤±1.5dB
Working voltage
DC+28V
Working current
≤1.8A
Power supply monitoring interface
Power supply and power amplifier enabling: through the heart capacitor
Output RF port
SMA
Dimensions
29.7*131*15.5mm(excluding SMA)
Working temperature
-20~+55ºC

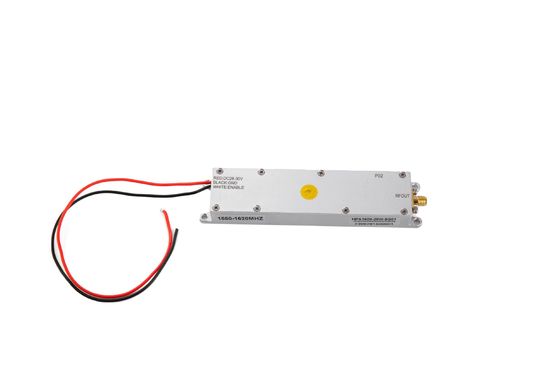

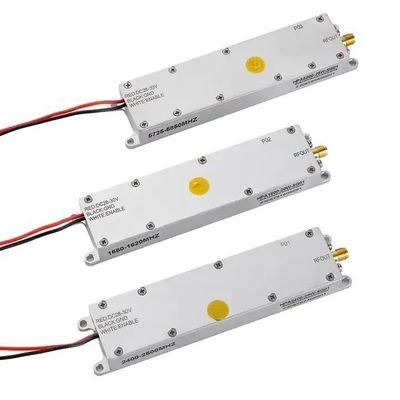

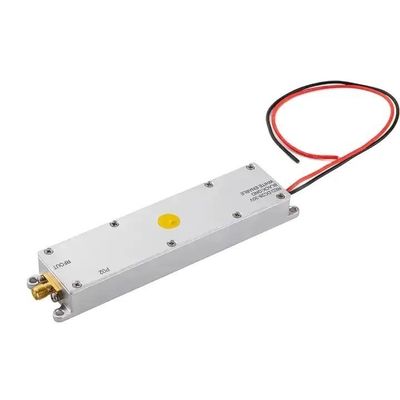

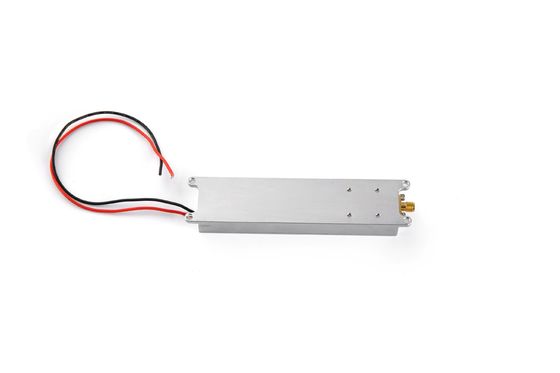

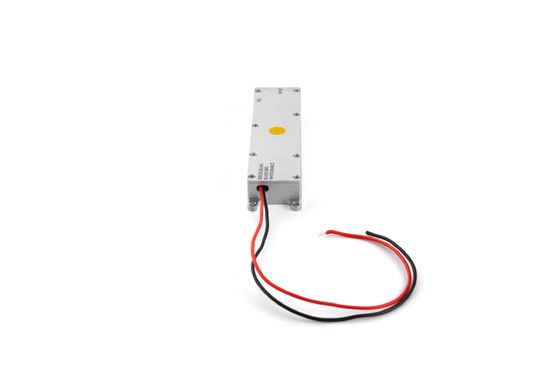

Detailed Photos



Customized 5.8g 10W-100W with GaN, Lora, Dds Technolo Anti Detector Module for Anti Drone System RF Amplifier

Customized 5.8g 10W-100W with GaN, Lora, Dds Technolo Anti Detector Module for Anti Drone System RF AmplifierCustomized 5.8g 10W-100W with GaN, Lora, Dds Technolo Anti Detector Module for Anti Drone System RF Amplifier
Packaging & Shipping

Customized 5.8g 10W-100W with GaN, Lora, Dds Technolo Anti Detector Module for Anti Drone System RF Amplifier

Customized 5.8g 10W-100W with GaN, Lora, Dds Technolo Anti Detector Module for Anti Drone System RF Amplifier
Company Profile

Welcome to Shenzhen Padi Flying Intelligent Technology Co., Ltd: Your Partner in Drone Security. We are a leading provider of comprehensive solutions in the anti-drone industry, dedicated to safeguarding airspace and critical infrastructure from unauthorized drone activity.

Why Choose Us:

Experience: With years of experience in the anti-drone industry, we have a proven track record of success.

Expertise: Our team consists of industry experts who are passionate about drone security and dedicated to providing the best solutions.

Trust: We have earned the trust of our clients through our commitment to quality, innovation, and exceptional customer service.

Choose Padi Flying Intelligent Tech Co., Ltd, we believe in a world where drone technology is used responsibly and safely. We invite you to explore our solutions and join us in

our mission to secure the skies
Customized 5.8g 10W-100W with GaN, Lora, Dds Technolo Anti Detector Module for Anti Drone System RF AmplifierCustomized 5.8g 10W-100W with GaN, Lora, Dds Technolo Anti Detector Module for Anti Drone System RF AmplifierCustomized 5.8g 10W-100W with GaN, Lora, Dds Technolo Anti Detector Module for Anti Drone System RF Amplifier

FAQ

1.Question : Why choose us ?

Answer : We have 6 years experience on drone business and one stop solutions of drone , especially on security .

2.Question : What is the minimum order quantity(MOQ) ?
Answer : No quantity limited , sample order or small order is acceptable.

3.Question : Could you offer wholesale price ?
Answer : Supportive,and wholesale price is better.

4.Question : How long is your delivery time ?
Answer : Generally 1-3 working days if stock available . Or need extra 3 working days to prepare goods .

5.Question : What is your product quality ?
Answer : Our raw materials purchased from qualified suppliers . And we have very strict qc standard to assure our final products meet your requirements .

6.Question : Can you print my own logo on the products ?
Answer : Yes , logo,packing design and other oem services are available .
We will prepare artwork for visual confirmation , then sample confirm finally bulk production .

7.Question : What's the payment terms ?
Answer :  T/T , Western union , Paypal , Alipay and so on.
