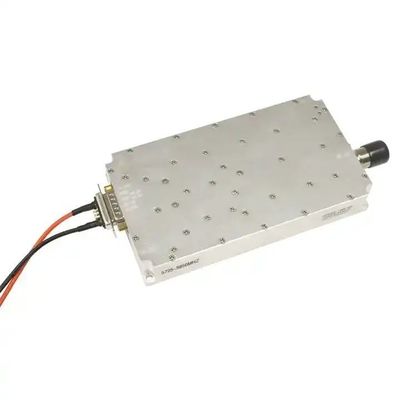

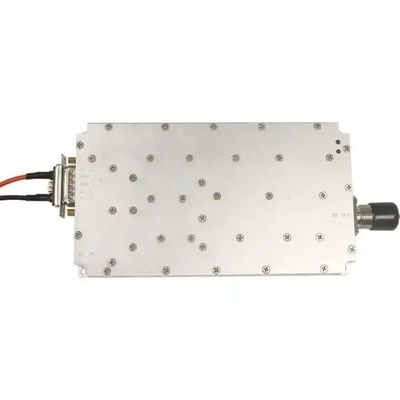

900MHz 100W GaN Amplifier Drone Counter Module for Anti Drone System Anti Autel RF Power Amplifier Module

Brand Name:	Padi Fly
MOQ:	1 piece
Price:	Negotiable
Payment Terms:	T/T, PayPal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO, RoHS

Model NO.:

PF-AM083

Information Content:

All

Condition:

New

Product Name:

RF GaN Power Amplifier Module

Frequency:

860-930MHz

Output Power:

100W

Gain:

45±1dB

Voltage:

24-32V

Product Weight:

1.5kg

Intra-Band Fluctuations:

≤2.5 (Peak-to-Peak Value)

In-Band Group Delay:

≤1us

Input Voltage Standing Wave Ratio:

≤1.35

Transport Package:

Carton

Specification:

170*94*26.5mm (excluding Connectors)

Trademark:

Origin:

Guangdong, China

Product Description

Appearance and installation instructions:
1. Overall dimensions: 170*94*26.5mm
2. Interface form:

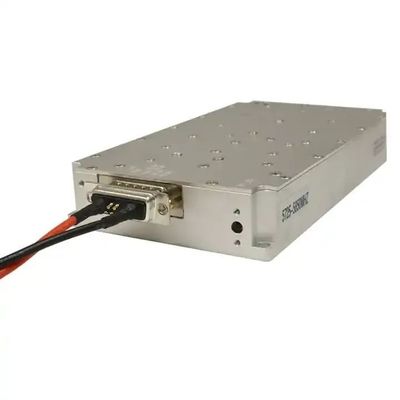

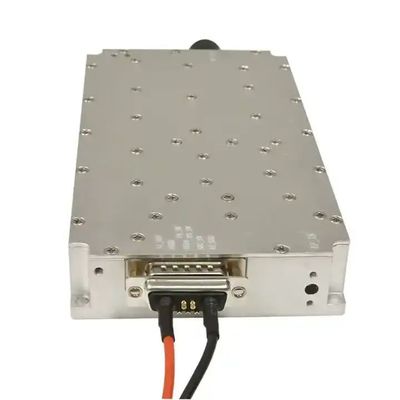

Power supply conditions: +30V power supply: 7W2 (male)
RF input interface: SMA-KFD (optional)

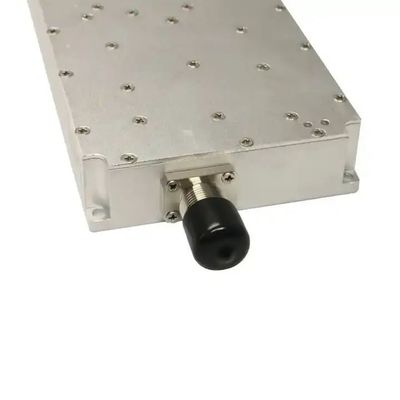

RF output interface: N-KFD
Control interface:
a.7W2 (male) socket: The first pin is connected to the power amplifier enable PA_SW (high level 5V/3.3V power amplifier turns on,low level or floating, the power amplifier turns off)
b.Feedthrough capacitor: From top to bottom, they are SRC_SW (internal signal source switch 5V/3.3V on, floating or grounded signal source off), PS_SW (internal and external signal source switch, low level is the built-in source, high level Level 5V/3.3V switch to external source)
3.Mounting hole diameter: Leave 4 Φ4.5mm through holes at the mounting holes for mounting M3 screws.

Frequency	860-930Mhz
Output Power(dBm)	100W(50dBm)
In-band group delay	≤1us
Gain	45±1.0,45±1.0 (external input 5dbm, power amplifier output 50dbm)
In-band fluctuation (dB)	≤2.5 (peak-to-peak value)
Input voltage standing wave ratio	≤1.35
Output voltage standing wave ratio	≤1.3
Supply voltage Typical	+30Vdc Range: 24-36V
Supply current	+30Vdc@100W≤5.5A
Output RF connector	N-50KFD
Size	170×94×26.5mm (excluding connectors)
Input signal source	Built-in high-efficiency modulation sweep signal source, which can also be connected to external sources
1 7W2 male socket 2 Feedthrough capacitors (from top to bottom)	1: A1 is the 30V power input, and A2 is GND; 2: The first pin of 7W2 is the PA_SW power amplifier enable; 3: The upper through-core capacitor is SRC_SW (internal signal source switch), high-on, low-off; 4: The feedthrough capacitor below is PS_SW (internal and external source switch), high: external source; low: built-in source;
