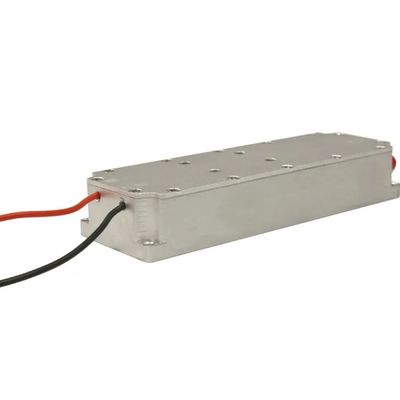

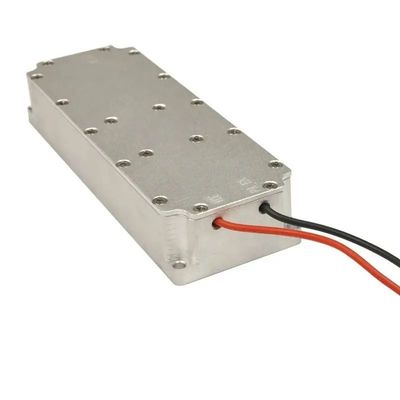

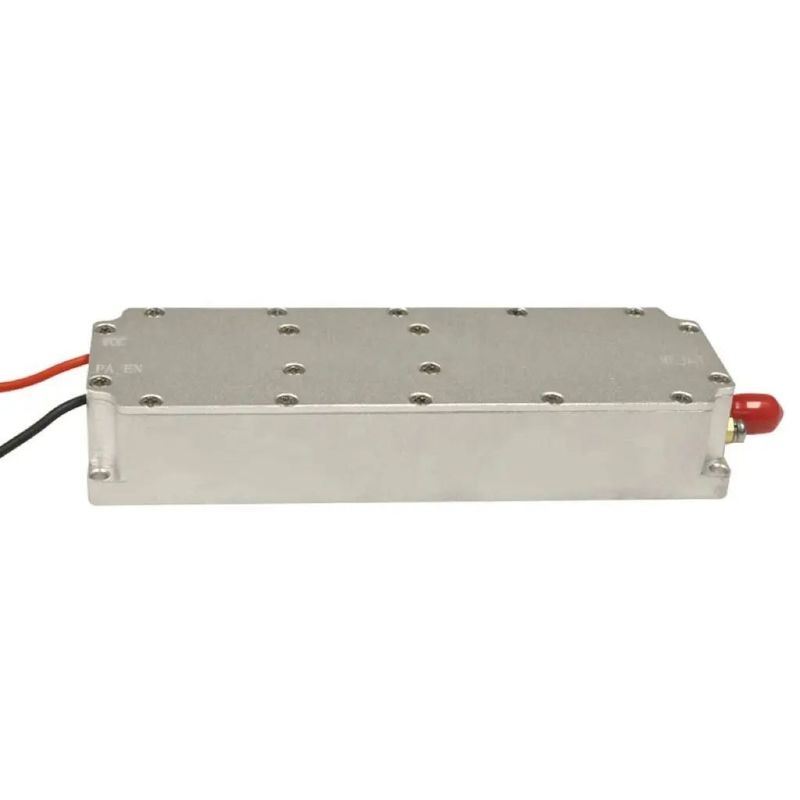

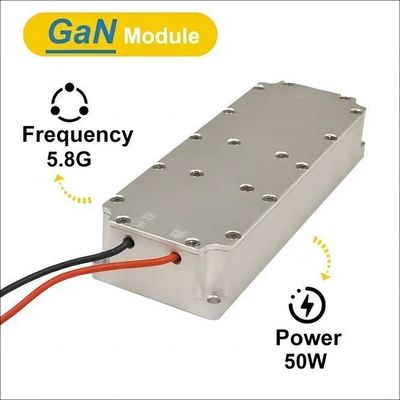

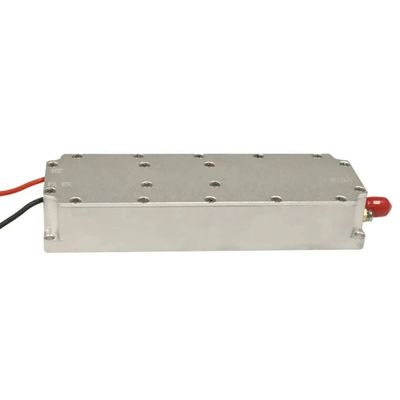

5.8g 50W GaN Anti-Drone Module Power Amplifier Module

Brand Name:	Pdfy
MOQ:	1 piece
Price:	Negotiable
Payment Terms:	T/T, PayPal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model NO.:

PF-AM058

Condition:

New

Type:

RF Power Amplifier Module

Support Network:

All

Information Content:

All

Product Name:

RF GaN Power Amplifier Module

Frequency And Power Customization:

Support

Frequency:

5.8g

Output Power:

50W

Max Gain:

40 DBm

Voltage:

24-32V

Product Weight:

136g

Transport Package:

Carton

Specification:

38*112*19.5mm

Trademark:

Origin:

Guangdong, China

Product Description

Brand Name	PDFY
Working frequency	5725-5850MHz
Saturated output power	40±1dBm
Gain	42±2dB
In-band fluctuation	≤2.0dB
Out-of-band spurious	9kHz~1GHz:≤-36dBm/30kHz 1GHz~12.75GHz:≤-30dBm/30KHz
Input VSWR	≤1.5
Gain temperature stability	≤±1.5dB
Working voltage	DC+28V
Working current	≤1.8A
Power supply monitoring interface	Power supply and power amplifier enabling: through the heart capacitor
Output RF port	SMA
Dimensions	29.713115.5mm(excluding SMA)
Working temperature	-20~+55ºC

5.8g 50W GaN Anti-Drone Module Power Amplifier Module

1.Question : Why choose us ?

Answer : We have 6 years experience on drone business and one stop solutions of drone , especially on security .

2.Question : What is the minimum order quantity(MOQ) ?
Answer : No quantity limited , sample order or small order is acceptable.

3.Question : Could you offer wholesale price ?
Answer : Supportive,and wholesale price is better.

4.Question : How long is your delivery time ?
Answer : Generally 1-3 working days if stock available . Or need extra 3 working days to prepare goods .

5.Question : What is your product quality ?
Answer : Our raw materials purchased from qualified suppliers . And we have very strict qc standard to assure our final products meet your requirements .

6.Question : Can you print my own logo on the products ?
Answer : Yes , logo,packing design and other oem services are available .
We will prepare artwork for visual confirmation , then sample confirm finally bulk production .

7.Question : What's the payment terms ?
Answer : T/T , Western union , Paypal , Alipay and so on.
