Good price online

products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Anti Drone Module
Created with Pixso. 5.2g 30W GaN Module RF Module Power Amplify Ua Drone Counter Module for Anti Drone System Autel Anti Fpv C-Uas Mavic 3 Autel

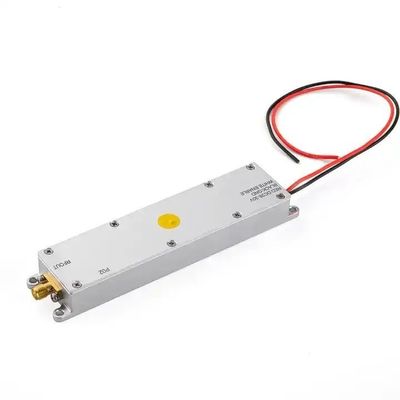

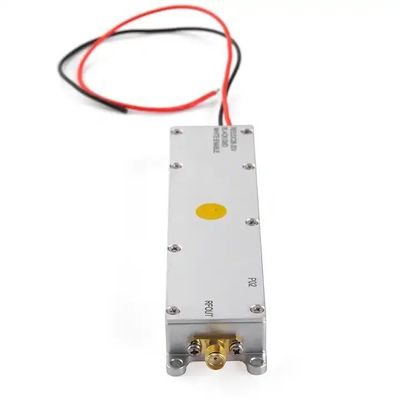

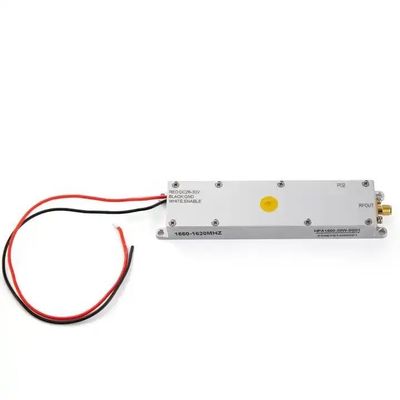

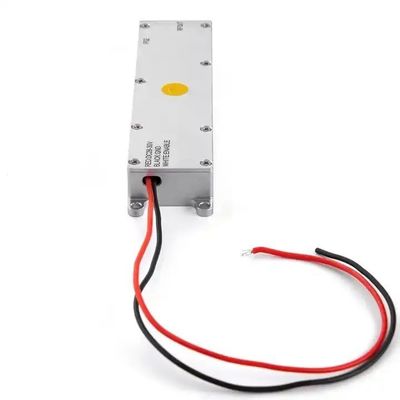

5.2g 30W GaN Module RF Module Power Amplify Ua Drone Counter Module for Anti Drone System Autel Anti Fpv C-Uas Mavic 3 Autel
  • name
  • name
  • name
  • name
  • name
  • name

5.2g 30W GaN Module RF Module Power Amplify Ua Drone Counter Module for Anti Drone System Autel Anti Fpv C-Uas Mavic 3 Autel

Brand Name: Pdfy
MOQ: 1 piece
Price: Negotiable
Payment Terms: T/T, PayPal
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE, ISO, RoHS, ISO
Model NO.:
PF-AM063
Information Content:
All
Condition:
New, New
Usage:
Telephone, Computer, Workstation, Server, Mobile Phone, Laptop
Product Name:
RF GaN Power Amplifier Module
Frequency And Power Customization:
Support Customization
Frequency:
5.2g
Output Power:
30W
Max Gain:
40 DBm
Voltage:
24-32V
Product Weight:
136g
Transport Package:
Carton
Specification:
29.7*131*15.5 Mm
Trademark:
No
Origin:
Guangdong, China
Product Description
5.2g 30W GaN Module RF Module Power Amplify Ua Drone Counter Module for Anti Drone System Autel Anti Fpv C-Uas Mavic 3 Autel
Product Parameters

Brand Name
PDFY
Working frequency
5150-5350MHz
Saturated output power
40±1dBm
Gain
42±2dB
In-band fluctuation
≤2.0dB

Out-of-band spurious
9kHz~1GHz:≤-36dBm/30kHz
1GHz~12.75GHz:≤-30dBm/30KHz
Input VSWR
≤1.5
Gain temperature stability
≤±1.5dB
Working voltage
DC+28V
Working current
≤1.8A
Power supply monitoring interface
Power supply and power amplifier enabling: through the heart capacitor
Output RF port
SMA
Dimensions
29.7*131*15.5mm(excluding SMA)
Working temperature
-20~+55ºC

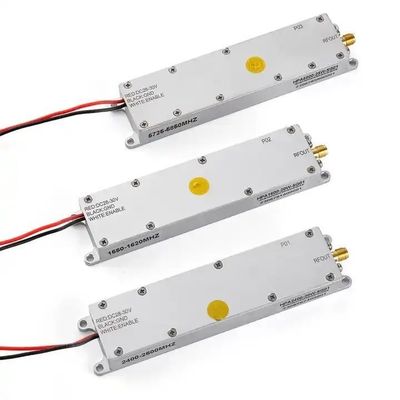

Detailed Photos

5.2g 30W GaN Module RF Module Power Amplify Ua Drone Counter Module for Anti Drone System Autel Anti Fpv C-Uas Mavic 3 Autel5.2g 30W GaN Module RF Module Power Amplify Ua Drone Counter Module for Anti Drone System Autel Anti Fpv C-Uas Mavic 3 Autel5.2g 30W GaN Module RF Module Power Amplify Ua Drone Counter Module for Anti Drone System Autel Anti Fpv C-Uas Mavic 3 Autel5.2g 30W GaN Module RF Module Power Amplify Ua Drone Counter Module for Anti Drone System Autel Anti Fpv C-Uas Mavic 3 Autel
Packaging & Shipping
5.2g 30W GaN Module RF Module Power Amplify Ua Drone Counter Module for Anti Drone System Autel Anti Fpv C-Uas Mavic 3 Autel

5.2g 30W GaN Module RF Module Power Amplify Ua Drone Counter Module for Anti Drone System Autel Anti Fpv C-Uas Mavic 3 Autel

Company Profile

Welcome to Shenzhen Padi Flying Intelligent Technology Co., Ltd: Your Partner in Drone Security. We are a leading provider of comprehensive solutions in the anti-drone industry, dedicated to safeguarding airspace and critical infrastructure from unauthorized drone activity.

Why Choose Us:

Experience: With years of experience in the anti-drone industry, we have a proven track record of success.

Expertise: Our team consists of industry experts who are passionate about drone security and dedicated to providing the best solutions.

Trust: We have earned the trust of our clients through our commitment to quality, innovation, and exceptional customer service.

Choose Padi Flying Intelligent Tech Co., Ltd, we believe in a world where drone technology is used responsibly and safely. We invite you to explore our solutions and join us in

our mission to secure the skies
5.2g 30W GaN Module RF Module Power Amplify Ua Drone Counter Module for Anti Drone System Autel Anti Fpv C-Uas Mavic 3 Autel
5.2g 30W GaN Module RF Module Power Amplify Ua Drone Counter Module for Anti Drone System Autel Anti Fpv C-Uas Mavic 3 Autel5.2g 30W GaN Module RF Module Power Amplify Ua Drone Counter Module for Anti Drone System Autel Anti Fpv C-Uas Mavic 3 Autel

FAQ

1.Question : Why choose us ?

Answer : We have 6 years experience on drone business and one stop solutions of drone , especially on security .

2.Question : What is the minimum order quantity(MOQ) ?
Answer : No quantity limited , sample order or small order is acceptable.

3.Question : Could you offer wholesale price ?
Answer : Supportive,and wholesale price is better.

4.Question : How long is your delivery time ?
Answer : Generally 1-3 working days if stock available . Or need extra 3 working days to prepare goods .

5.Question : What is your product quality ?
Answer : Our raw materials purchased from qualified suppliers . And we have very strict qc standard to assure our final products meet your requirements .

6.Question : Can you print my own logo on the products ?
Answer : Yes , logo,packing design and other oem services are available .
We will prepare artwork for visual confirmation , then sample confirm finally bulk production .

7.Question : What's the payment terms ?
Answer :  T/T , Western union , Paypal , Alipay and so on.
