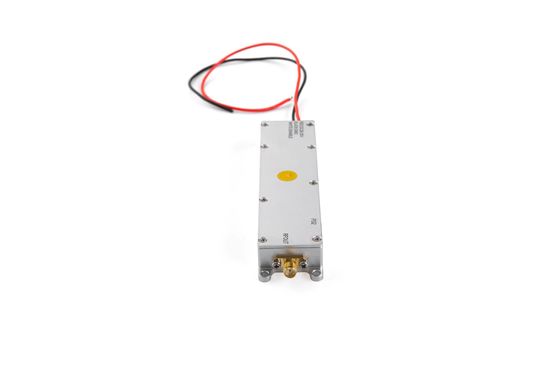

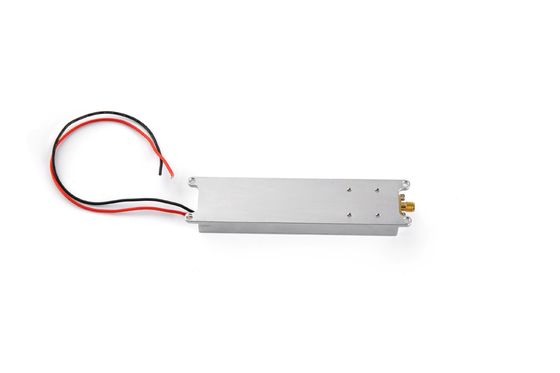

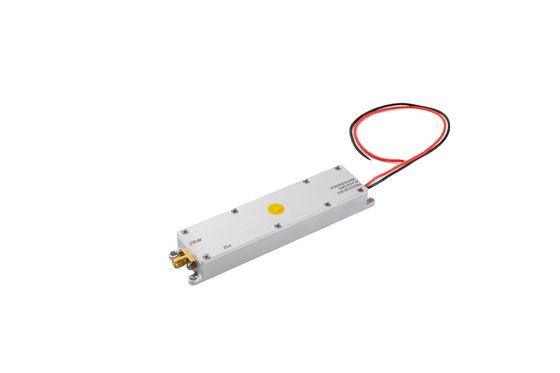

5.2g 20W GaN RF Power Amplifier Detect Module for Anti Drone System Autel Mavic 3 Counter Fpv C-Uas Djis Countermeasure

5.2g 20W GaN RF Power Amplifier Detect Module for Anti Drone System Autel Mavic 3 Counter Fpv C-Uas Djis Countermeasure

Brand Name:	OEM
MOQ:	1 Piece
Price:	Negotiable
Delivery Time:	1-3 Working Days
Payment Terms:	T/T,PayPal,Negotiable

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO, RoHS, ISO

Model NO.:

PF-AM065

Information Content:

All

Condition:

New, New

Usage:

Telephone, Computer, Workstation, Server, Mobile Phone, Laptop

Product Name:

RF GaN Power Amplifier Module

Frequency And Power Customization:

5150-5350MHz

Frequency:

5.2g

Output Power:

20W

Max Gain:

47 DBm

Voltage:

24-32V

Out Power:

5 To 100W

Transport Package:

Carton

Specification:

37.3*112*19.5mm

Trademark:

Origin:

Guangdong, China

Packaging Details:

Standard Package

Supply Ability:

10000 Sets / Month

Product Description

Padi Fly main business includes UAV detector module, handheld detection, backpack detection, vehicle detection, UAV accessories, etc.

1.The power amplifier uses domestic core key components and can operate normally at low temperatures of -40°C.

2.This document stipulates the radio frequency and monitoring technical indicators of the 5.2G 20W power amplifier module, the definition of each port of the module, the appearance and structure of the module, etc.

3.This document applies to all aspects of product design, verification, production and quality inspection of the 5.2G 20W power amplifier module.

Brand Name	PDFY
Working frequency	5150-5350MHz
Power	20W
Working Voltage	30V
Max Output Power	47dBm
Working Efficiency	≥60%
Gain	47dbi
Passband Riplpe	≤2dB
Power supply requirements	≥3.7A
Size	29.713115.5mm
Weight	136 g
Operating Temperature	-10~+55ºC
RF Connector	SMA
Connect line red	DC24-32V
Connect line black	GND
Connect line white	ENABLE

5.2g 20W GaN RF Power Amplifier Detect Module for Anti Drone System Autel Mavic 3 Counter Fpv C-Uas Djis Countermeasure 6

Padi Fly Technology Co. Ltd specializes in the field of advanced technology.

Our company is located in the vibrantcity of Shenzhen,known as a hub of innovation andtechnology in China.
With over 3000 square meters of plant space, we specialize in the design, development, and distribution of FPV drones along with drone countermeasure solution.
We are known for our innovation, quality, and commitment to enhancing the user experience.

5.2g 20W GaN RF Power Amplifier Detect Module for Anti Drone System Autel Mavic 3 Counter Fpv C-Uas Djis Countermeasure 7

Our Business Range for FPV drone accessories:
We can provide include: Image transmission, motor, carbon fiber frame, flight control, electrical regulation, antenna, remote control, propeller, charger, etc..
We also provide the industry's professional OEM and ODM technology and services.

5.2g 20W GaN RF Power Amplifier Detect Module for Anti Drone System Autel Mavic 3 Counter Fpv C-Uas Djis Countermeasure 11

Q:Why choose PDFLY?

A:1. From real factory: cheaper price, better quality, faster delivery.

2. Quality assurance: Ship after successful testing.

3. After-sales: Professional team to solve problems and technical support.

Q:How can we guarantee quality?

A:1.Always a pre-production sample before mass production;

2.Always final Inspection before shipment;

3.Professional sales staff will communicate with you to confirm every link

Q:What's the lead time?

A:Sample needs 3-7 days, mass production needs 7-10 days, according to your order requirements & volumes.

Q:How to place an order from you?

A:Please send the products you like to us and our professional sales will contact with you within 24 hours to confirm the details of the products and negotiate. After you confirm the order, we will guide you through payment and arrange delivery, tell you the tracking number and help track the logistics.

We look forward to your comments on our products and services.
