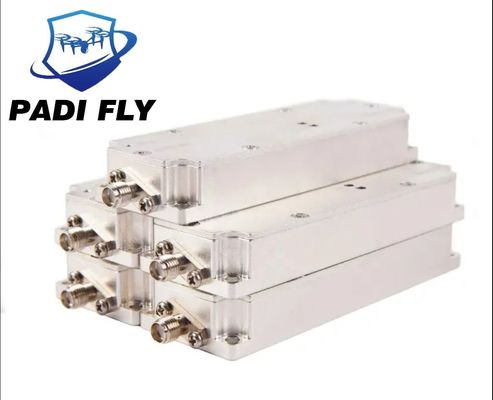

5.2g 100W GaN Amplifier Drone Counter Module for Anti Drone System Anti Autel RF Power Amplifier

5.2g 100W GaN Amplifier Drone Counter Module for Anti Drone System Anti Autel RF Power Amplifier

Brand Name:	OEM
MOQ:	1 Piece
Price:	Negotiable
Delivery Time:	1-3 Working Days
Payment Terms:	T/T,PayPal,Negotiable

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO, RoHS

Model NO.:

PF-AM066

Support Network:

All

Information Content:

All

Condition:

New

Product Name:

RF GaN Power Amplifier Module

Frequency And Power Customization:

5150-5350MHz

Frequency:

5.2g

Output Power:

100W

Gain:

45±1dB

Voltage:

24-32V

Intra-Band Fluctuations:

≤2.5 (Peak-to-Peak Value)

Product Weight:

1.5kg

In-Band Group Delay:

≤1us

Transport Package:

Carton

Specification:

170*94*26.5mm (excluding Connectors)

Trademark:

Origin:

Guangdong, China

Packaging Details:

Standard Package

Supply Ability:

10000 Sets / Month

Product Description

Padi Fly main business includes UAV detector module, handheld detection, backpack detection, vehicle detection, UAV accessories, etc.

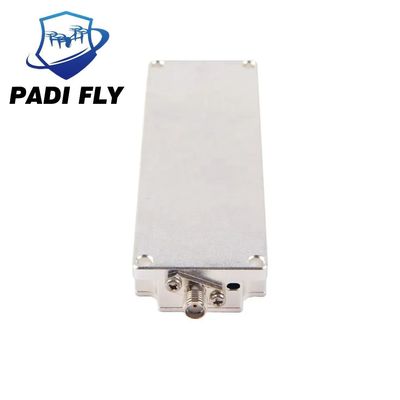

ppearance and installation instructions:
1. Overall dimensions: 170*94*26.5mm
2. Interface form:

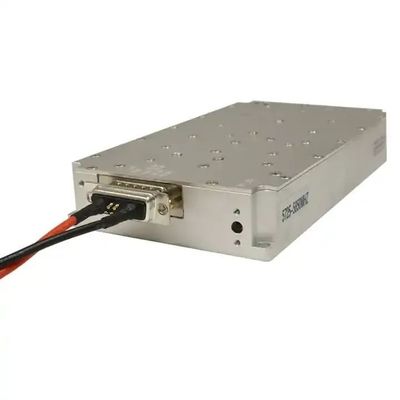

Power supply conditions: +30V power supply: 7W2 (male)
RF input interface: SMA-KFD (optional)
RF output interface: N-KFD
Control interface:
a.7W2 (male) socket: The first pin is connected to the power amplifier enable PA_SW (high level 5V/3.3V power amplifier turns on,low level or floating, the power amplifier turns off)
b.Feedthrough capacitor: From top to bottom, they are SRC_SW (internal signal source switch 5V/3.3V on, floating or grounded signal source off), PS_SW (internal and external signal source switch, low level is the built-in source, high level Level 5V/3.3V switch to external source)
3.Mounting hole diameter: Leave 4 Φ4.5mm through holes at the mounting holes for mounting M3 screws.

Brand Name	PADI FLY
Working frequency	5150-5350MHz
Power	100W(50dBm)
Working Voltage	30V
Max Output Power	45±1.0,45±1.0 (external input 9dbm, power amplifier output 50dbm)
Working Efficiency	≥60%
Gain	47dbi
Passband Riplpe	≤2dB
Power supply requirements	≥3.7A
Size	170×94×26.5mm (excluding connectors)
Weight	1.5Kg
Operating Temperature	-10~+55ºC
RF Connector	SMA
Connect line red	DC24-32V
Connect line black	GND
Connect line white	ENABLE

5.2g 100W GaN Amplifier Drone Counter Module for Anti Drone System Anti Autel RF Power Amplifier 5

Padi Fly Technology Co. Ltd specializes in the field of advanced technology.

Our company is located in the vibrantcity of Shenzhen,known as a hub of innovation andtechnology in China.

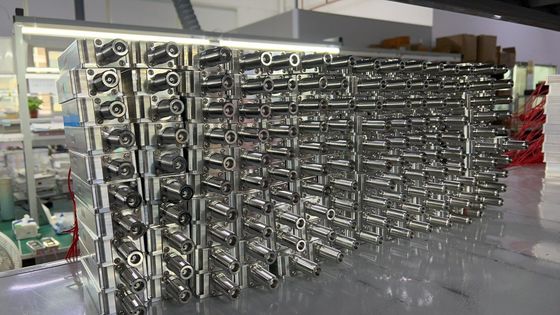

With over 3000 square meters of plant space, we specialize in the design, development, and distribution of FPV drones along with drone countermeasure solution.
We are known for our innovation, quality, and commitment to enhancing the user experience.

5.2g 100W GaN Amplifier Drone Counter Module for Anti Drone System Anti Autel RF Power Amplifier 6

Our Business Range for FPV drone accessories:
We can provide include: Image transmission, motor, carbon fiber frame, flight control, electrical regulation, antenna, remote control, propeller, charger, etc..
We also provide the industry's professional OEM and ODM technology and services.

5.2g 100W GaN Amplifier Drone Counter Module for Anti Drone System Anti Autel RF Power Amplifier 10

Q:Why choose PDFLY?

A:1. From real factory: cheaper price, better quality, faster delivery.

2. Quality assurance: Ship after successful testing.

3. After-sales: Professional team to solve problems and technical support.

Q:How can we guarantee quality?

A:1.Always a pre-production sample before mass production;

2.Always final Inspection before shipment;

3.Professional sales staff will communicate with you to confirm every link

Q:What's the lead time?

A:Sample needs 3-7 days, mass production needs 7-10 days, according to your order requirements & volumes.

Q:How to place an order from you?

A:Please send the products you like to us and our professional sales will contact with you within 24 hours to confirm the details of the products and negotiate. After you confirm the order, we will guide you through payment and arrange delivery, tell you the tracking number and help track the logistics.

We look forward to your comments on our products and services.
