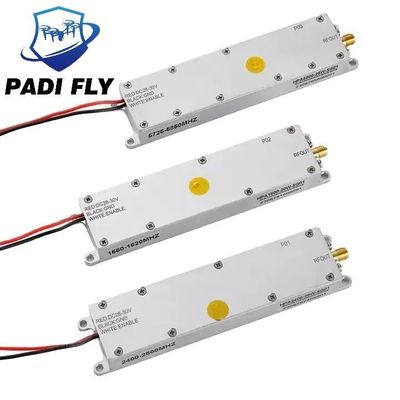

1.2g 30W GaN Anti-Module for Anti Drone System GaN Autel Anti Fpv C-Uas Mavic 3 Autel Fpv Drone Ua Anti Drone Module

1.2g 30W GaN Anti-Module for Anti Drone System GaN Autel Anti Fpv C-Uas Mavic 3 Autel Fpv Drone Ua Anti Drone Module

Brand Name:	OEM
MOQ:	1 Piece
Price:	Negotiable
Delivery Time:	1-3 Working Days
Payment Terms:	T/T,PayPal,Negotiable

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO, RoHS

Model NO.:

PF-AM079

Support Network:

All

Information Content:

All

Condition:

New

Product Name:

RF GaN Power Amplifier Module

Frequency:

1.2g

Output Power:

30W

Gain:

45 DBm

Voltage:

24-28V

Product Weight:

136kg

Intra-Band Fluctuations:

≤2.5 (Peak-to-Peak Value)

In-Band Group Delay:

≤1us

Input Voltage Standing Wave Ratio:

≤1.35

Transport Package:

Carton

Specification:

29.7*131*15.5mm

Trademark:

Origin:

Guangdong, China

Packaging Details:

Standard Package

Supply Ability:

10000 Sets / Month

Product Description

Padi Fly main business includes UAV detector module, handheld detection, backpack detection, vehicle detection, UAV accessories, etc.

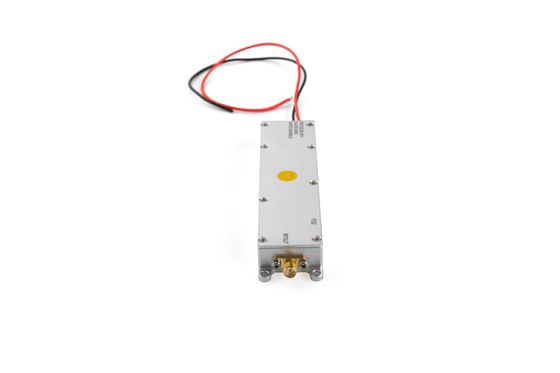

1.2GHz anti drone module, GaN Technology, 30W.

Power and frequency support Cusyomization.

GaN transistors are more efficient.
The efficiency minus the driver (heating power consumption) is about 55-65%.

In fact, the working efficiency over 2.4G is 52%, and the working efficiency below 2.4G is 55%.

However, the working efficiency of LDMOS modules is only 45%-55%, so GaN modules consume less power and generate heat slowly.

Anti drone module, anti drone system, drone detector antenna.

The radio frequency and monitoring technical indicators of the power amplifier module stipulate the definition of each port of the module and the shape and structure of the module.

Brand Name	PDFY
Working frequency	1.2G
Saturated output power	40±1dBm
Gain	42±2dB
In-band fluctuation	≤2.0dB
Out-of-band spurious	9kHz~1GHz:≤-36dBm/30kHz 1GHz~12.75GHz:≤-30dBm/30KHz
Input VSWR	≤1.5
Gain temperature stability	≤±1.5dB
Working voltage	DC+28V
Working current	≤1.8A
Power supply monitoring interface	Power supply and power amplifier enabling: through the heart capacitor
Output RF port	SMA
Dimensions	29.713115.5mm(excluding SMA)
Working temperature	-20~+55ºC

1.2g 30W GaN Anti-Module for Anti Drone System GaN Autel Anti Fpv C-Uas Mavic 3 Autel Fpv Drone Ua Anti Drone Module 4

Padi Fly Technology Co. Ltd specializes in the field of advanced technology.

Our company is located in the vibrantcity of Shenzhen,known as a hub of innovation andtechnology in China.

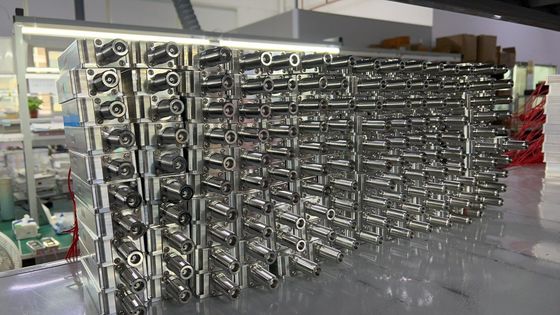

With over 3000 square meters of plant space, we specialize in the design, development, and distribution of FPV drones along with drone countermeasure solution.
We are known for our innovation, quality, and commitment to enhancing the user experience.

1.2g 30W GaN Anti-Module for Anti Drone System GaN Autel Anti Fpv C-Uas Mavic 3 Autel Fpv Drone Ua Anti Drone Module 5

Our Business Range for FPV drone accessories:
We can provide include: Image transmission, motor, carbon fiber frame, flight control, electrical regulation, antenna, remote control, propeller, charger, etc..
We also provide the industry's professional OEM and ODM technology and services.

1.2g 30W GaN Anti-Module for Anti Drone System GaN Autel Anti Fpv C-Uas Mavic 3 Autel Fpv Drone Ua Anti Drone Module 9

Q:Why choose PDFLY?

A:1. From real factory: cheaper price, better quality, faster delivery.

2. Quality assurance: Ship after successful testing.

3. After-sales: Professional team to solve problems and technical support.

Q:How can we guarantee quality?

A:1.Always a pre-production sample before mass production;

2.Always final Inspection before shipment;

3.Professional sales staff will communicate with you to confirm every link

Q:What's the lead time?

A:Sample needs 3-7 days, mass production needs 7-10 days, according to your order requirements & volumes.

Q:How to place an order from you?

A:Please send the products you like to us and our professional sales will contact with you within 24 hours to confirm the details of the products and negotiate. After you confirm the order, we will guide you through payment and arrange delivery, tell you the tracking number and help track the logistics.

We look forward to your comments on our products and services.
