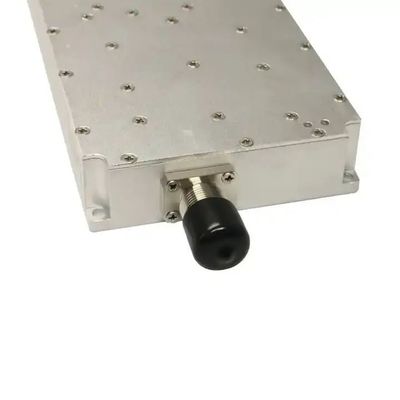

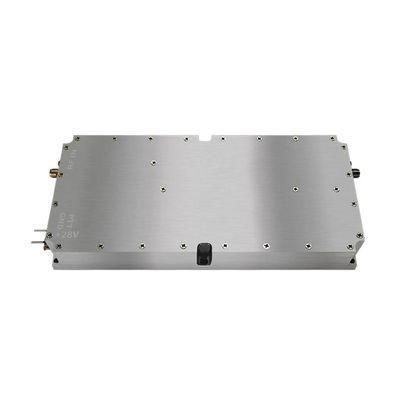

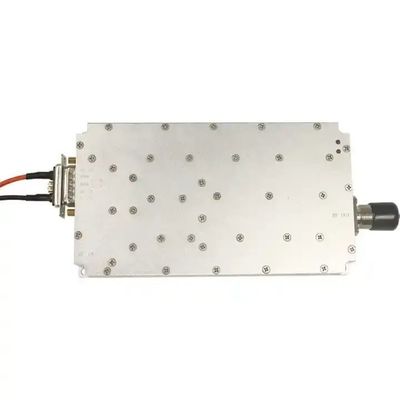

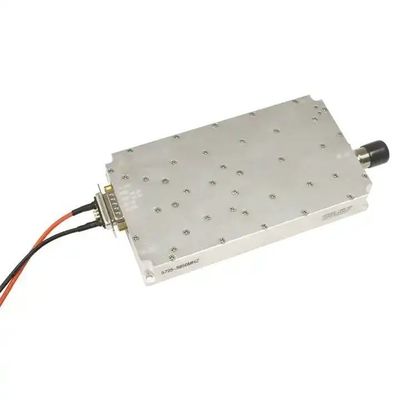

Outstanding 1.4G 100W GaN Amplifier Drone Counter Module for Anti Drone System UVA Jammer

Brand Name:	Padi Fly
MOQ:	1 piece
Price:	Negotiable
Payment Terms:	T/T, PayPal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO, RoHS

Model NO.:

PF-AM077

Support Network:

All

Information Content:

All

Condition:

New

Product Name:

RF GaN Power Amplifier Module

Frequency:

1420-1450MHz

Output Power:

100W

Gain:

45±1dB

Voltage:

24-32V

Product Weight:

1.5kg

Intra-Band Fluctuations:

≤2.5 (Peak-to-Peak Value)

In-Band Group Delay:

≤1us

Input Voltage Standing Wave Ratio:

≤1.35

Transport Package:

Carton

Specification:

170*94*26.5mm (excluding Connectors)

Trademark:

Origin:

Guangdong, China

Product Description

Appearance and installation instructions:

Frequency	1420-1450Mhz
Output Power(dBm)	100W(50dBm)
In-band group delay	≤1us
Gain	45±1.0,45±1.0 (external input 6dbm, power amplifier output 50dbm)
In-band fluctuation (dB)	≤2.5 (peak-to-peak value)
Input voltage standing wave ratio	≤1.35
Output voltage standing wave ratio	≤1.3
Supply voltage Typical	+30Vdc Range: 24-36V
Supply current	+30Vdc@100W≤6.5A
Output RF connector	N-50KFD
Size	170×94×26.5mm (excluding connectors)
Input signal source	Built-in high-efficiency modulation sweep signal source, which can also be connected to external sources

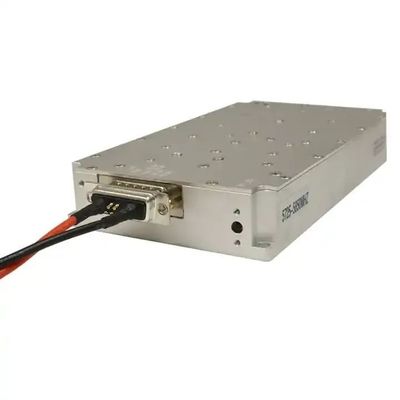

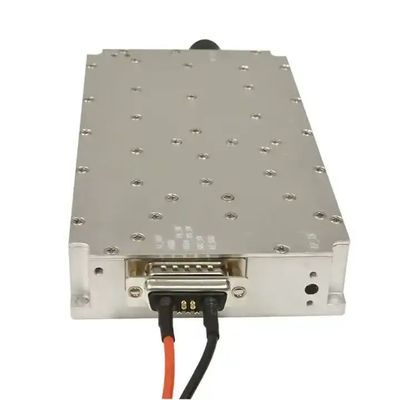

1 7W2 male socket 2 Feedthrough capacitors (from top to bottom)	1: A1 is the 30V power input, and A2 is GND; 2: The first pin of 7W2 is the PA_SW power amplifier enable; 3: The upper through-core capacitor is SRC_SW (internal signal source switch), high-on, low-off; 4: The feedthrough capacitor below is PS_SW (internal and external source switch), high: external source; low: built-in source;

Outstanding 1.4G 100W GaN Amplifier Drone Counter Module for Anti Drone System UVA Jammer

Welcome to Shenzhen Padi Flying Intelligent Technology Co., Ltd: Your Partner in Drone Security. We are a leading provider of comprehensive solutions in the anti-drone industry, dedicated to safeguarding airspace and critical infrastructure from unauthorized drone activity.

Why Choose Us:

Experience: With years of experience in the anti-drone industry, we have a proven track record of success.

Expertise: Our team consists of industry experts who are passionate about drone security and dedicated to providing the best solutions.

Trust: We have earned the trust of our clients through our commitment to quality, innovation, and exceptional customer service.

Choose Padi Flying Intelligent Tech Co., Ltd, we believe in a world where drone technology is used responsibly and safely. We invite you to explore our solutions and join us in

our mission to secure the skies
Outstanding 1.4G 100W GaN Amplifier Drone Counter Module for Anti Drone System UVA Jammer

1.Question : Why choose us ?

Answer : We have 6 years experience on drone business and one stop solutions of drone , especially on security .

2.Question : What is the minimum order quantity(MOQ) ?
Answer : No quantity limited , sample order or small order is acceptable.

3.Question : Could you offer wholesale price ?
Answer : Supportive,and wholesale price is better.

4.Question : How long is your delivery time ?
Answer : Generally 1-3 working days if stock available . Or need extra 3 working days to prepare goods .

5.Question : What is your product quality ?
Answer : Our raw materials purchased from qualified suppliers . And we have very strict qc standard to assure our final products meet your requirements .

6.Question : Can you print my own logo on the products ?
Answer : Yes , logo,packing design and other oem services are available .
We will prepare artwork for visual confirmation , then sample confirm finally bulk production .

7.Question : What's the payment terms ?
Answer : T/T , Western union , Paypal , Alipay and so on.
