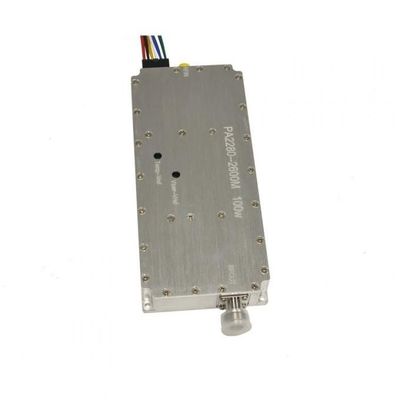

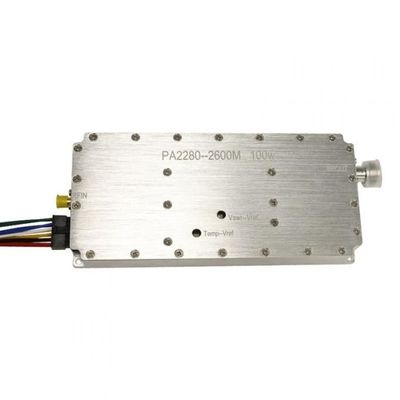

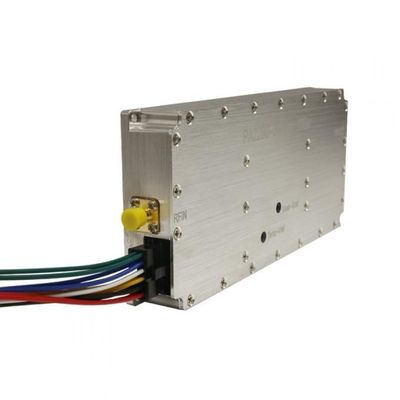

100W RF Amplifier Module Temperature Voltage Protected for Anti Drone Equipment

100W RF Amplifier Module Temperature Voltage Protected for Anti Drone Equipment

Brand Name:	OEM
MOQ:	1 Piece
Price:	Negotiable
Delivery Time:	1-3 Working Days
Payment Terms:	T/T,PayPal,Negotiable

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

RoHS

Model NO.:

PF-MO010A

Support Network:

Customized

Information Content:

Data

Condition:

New

Frequency:

2280-2600MHz

Power Supply:

100W

Power Flatness:

5 DBi

Vswr Protection:

Alarm Indication, High-Level Protection

Supply Current:

<8.5A

Input Connect:

SMA

Output Connect:

N-Type

Weight:

350g

Temperature Protection:

Temperature Detection Voltage, Temperature Voltage

Transport Package:

Carton

Specification:

170*77*24mm

Trademark:

PADIFLY/OEM

Origin:

China

Package Size:

30.00cm * 20.00cm * 10.00cm

Package Gross Weight:

0.500kg

Packaging Details:

Standard Package

Supply Ability:

10000 Sets / Month

Highlight:

100W RF Power Amplifier Module, Power Amplifier Mo

Product Description

Padi Fly main business includes UAV detector module, handheld detection, backpack detection, vehicle detection, UAV accessories, etc.

100W RF Amplifier Module Temperature Voltage Protected for Anti Drone Equipment 1

Specification

Frequency	2280-2600mhz
Power supply	100W
Saturated output power	50±1dBm @input=5dbm
Working voltage	DC:28-32V
Protection	Temperature protection 90 degrees,Reverse Power 30W protection
Working current	≤8.5A
Power supply monitoring interface	Power supply: Perform capacitive Pin1:GNDPin2:GND Pin3: 28V Pin4: 28V Pin5: 28VPin6: 28V Pin7: GND Pin8: GND Pin9:Power indication(0-3.3V,Power detection voltage)Pin10:VSWR protection(0-3.3V,Alarm indication, high-level protection)Pin11:Enable control(3.3-5V,High level on, low level off 3.3-5V)Pin12:Temperature indication(0-5V,Temperature detection voltage, temperature voltage attached diagram)

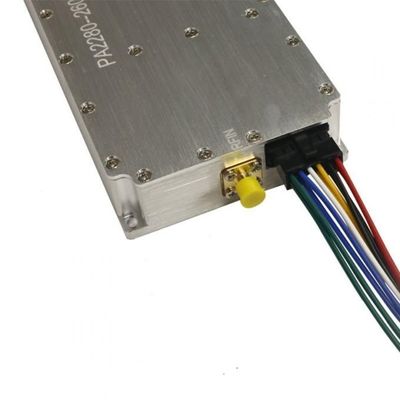

Iinput RF port	SMA

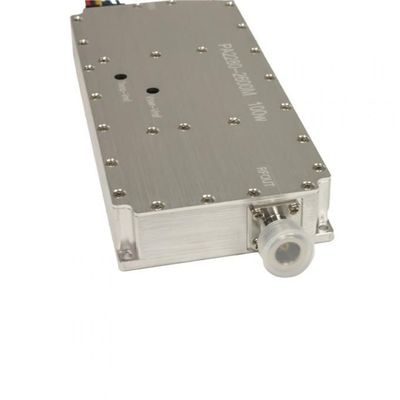

Output RF port	N-F
Dimensions	1707724mm
Working temperature	65ºC

100W RF Amplifier Module Temperature Voltage Protected for Anti Drone Equipment 9

Padi Fly Technology Co. Ltd specializes in the field of advanced technology.

Our company is located in the vibrantcity of Shenzhen,known as a hub of innovation andtechnology in China.
With over 3000 square meters of plant space, we specialize in the design, development, and distribution of FPV drones along with drone countermeasure solution.
We are known for our innovation, quality, and commitment to enhancing the user experience.

100W RF Amplifier Module Temperature Voltage Protected for Anti Drone Equipment 10

Our Business Range for FPV drone accessories:
We can provide include: Image transmission, motor, carbon fiber frame, flight control, electrical regulation, antenna, remote control, propeller, charger, etc..
We also provide the industry's professional OEM and ODM technology and services.

100W RF Amplifier Module Temperature Voltage Protected for Anti Drone Equipment 14

Q:Why choose PDFLY?

A:1. From real factory: cheaper price, better quality, faster delivery.

2. Quality assurance: Ship after successful testing.

3. After-sales: Professional team to solve problems and technical support.

Q:How can we guarantee quality?

A:1.Always a pre-production sample before mass production;

2.Always final Inspection before shipment;

3.Professional sales staff will communicate with you to confirm every link

Q:What's the lead time?

A:Sample needs 3-7 days, mass production needs 7-10 days, according to your order requirements & volumes.

Q:How to place an order from you?

A:Please send the products you like to us and our professional sales will contact with you within 24 hours to confirm the details of the products and negotiate. After you confirm the order, we will guide you through payment and arrange delivery, tell you the tracking number and help track the logistics.

We look forward to your comments on our products and services.
