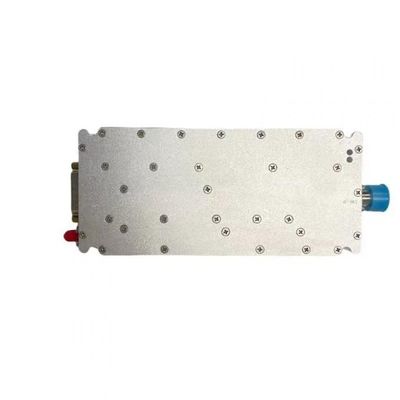

Wide Band Anti Drone 100W RF Power Amplifier Module, Counter Drone Module 710-760MHz

Wide Band Anti Drone 100W RF Power Amplifier Module, Counter Drone Module 710-760MHz

Brand Name:	OEM
MOQ:	1 Piece
Price:	Negotiable
Delivery Time:	1-3 Working Days
Payment Terms:	T/T,PayPal,Negotiable

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model NO.:

PF-DM018

Power Supply:

100W

Saturated Output Power:

47±1dBm @Input=3~5dBm

Vswr:

Supply Current:

Less Than 8.5A

Working Voltage:

DC+32V

Temperature Protection(Warn):

Temperature Protection 90 Degrees(See Pin8)

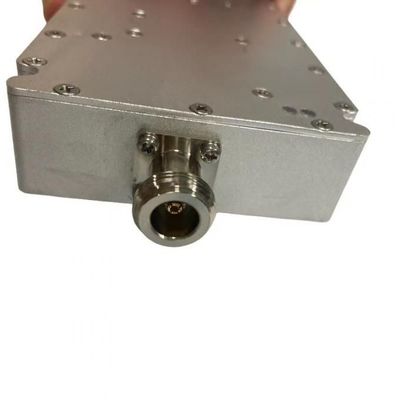

Output Connect:

N-Type

Weight:

350g

Input Connect:

SMA

Operating Temperature:

-20ºC-50ºC

Power Flatness:

5 DBi

Supply Ability:

5000PCS Per Month

Transport Package:

Carton

Specification:

170*77*24.5mm

Trademark:

Origin:

China

Packaging Details:

Standard Package

Supply Ability:

10000 Sets / Month

Highlight:

Fpv Equipment RF Power Amplifier Module, 50W RF Po

Product Description

Padi Fly main business includes UAV detector module, handheld detection, backpack detection, vehicle detection, UAV accessories, etc.

Specification

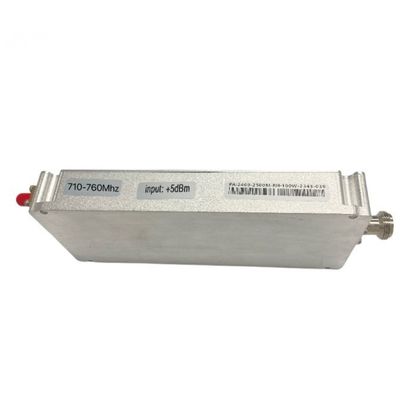

Frequency	710-760mhz
Power supply	100W
Saturated output power	50±1dBm @input=5dbm
Gain	50±2dB
In-band fluctuation	≤2.0dB
Out-of-band spurious	9kHz~1GHz:≤-36dBm/30kHz 1GHz~12.75GHz:≤-30dBm/30KHz
Input VSWR/Out VSWR	≤2
Gain temperature stability	≤±1.5dB
Working voltage	DC+32V
Protection	Temperature protection 90 degrees,Reverse Power 30W protection
Working current	≤8.5A

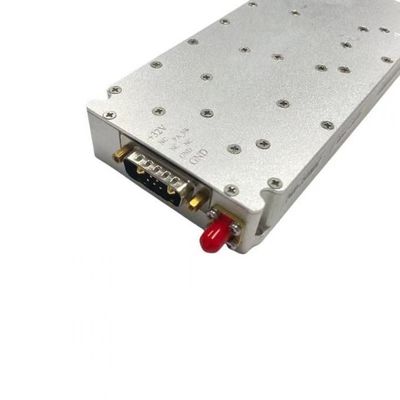

Power supply monitoring interface	Power supply: 7W2 power seat A1:32V A2:GND Pin1: PA_SW (High power on, Low level off) Other pins:NC
Iinput RF port	SMA

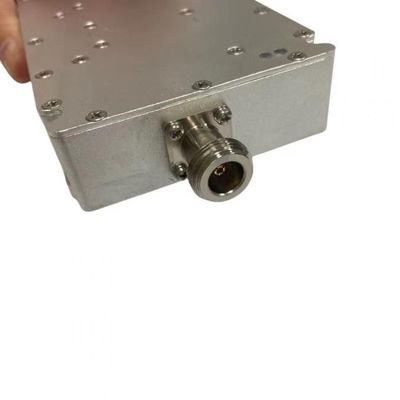

Output RF port	N-F
Dimensions	1707724.5mm
Working temperature	-20~+55ºC

Wide Band Anti Drone 100W RF Power Amplifier Module, Counter Drone Module 710-760MHz 2

Wide Band Anti Drone 100W RF Power Amplifier Module, Counter Drone Module 710-760MHz 8

Padi Fly Technology Co. Ltd specializes in the field of advanced technology.

Our company is located in the vibrantcity of Shenzhen,known as a hub of innovation andtechnology in China.
With over 3000 square meters of plant space, we specialize in the design, development, and distribution of FPV drones along with drone countermeasure solution.
We are known for our innovation, quality, and commitment to enhancing the user experience.

Wide Band Anti Drone 100W RF Power Amplifier Module, Counter Drone Module 710-760MHz 9

Our Business Range for FPV drone accessories:
We can provide include: Image transmission, motor, carbon fiber frame, flight control, electrical regulation, antenna, remote control, propeller, charger, etc..
We also provide the industry's professional OEM and ODM technology and services.

Wide Band Anti Drone 100W RF Power Amplifier Module, Counter Drone Module 710-760MHz 13

Q:Why choose PDFLY?

A:1. From real factory: cheaper price, better quality, faster delivery.

2. Quality assurance: Ship after successful testing.

3. After-sales: Professional team to solve problems and technical support.

Q:How can we guarantee quality?

A:1.Always a pre-production sample before mass production;

2.Always final Inspection before shipment;

3.Professional sales staff will communicate with you to confirm every link

Q:What's the lead time?

A:Sample needs 3-7 days, mass production needs 7-10 days, according to your order requirements & volumes.

Q:How to place an order from you?

A:Please send the products you like to us and our professional sales will contact with you within 24 hours to confirm the details of the products and negotiate. After you confirm the order, we will guide you through payment and arrange delivery, tell you the tracking number and help track the logistics.

We look forward to your comments on our products and services.
