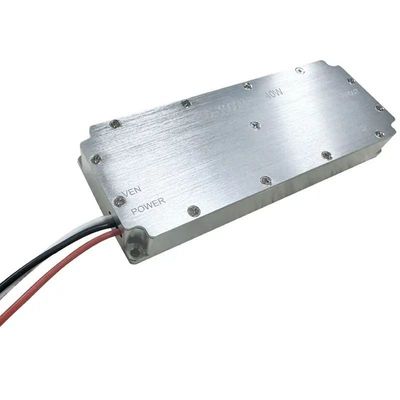

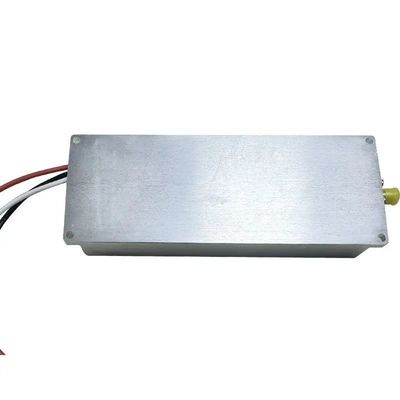

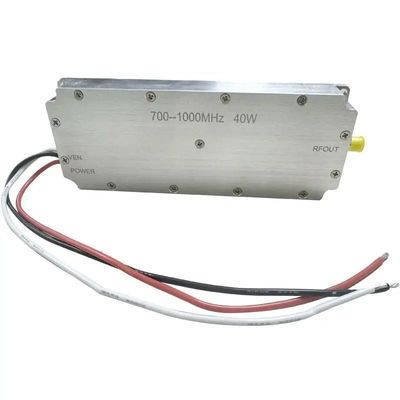

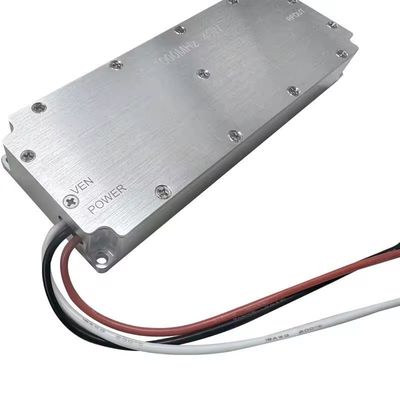

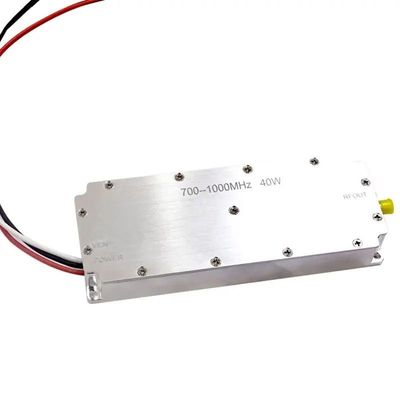

Wide Band Ati Drone 700-1000MHz 40W Anti Fpv Digital Modulation Power Amplifier Module Lora Module

Wide Band Ati Drone 700-1000MHz 40W Anti Fpv Digital Modulation Power Amplifier Module Lora Module

Brand Name:	OEM
MOQ:	1 Piece
Price:	Negotiable
Delivery Time:	1-3 Working Days
Payment Terms:	T/T,PayPal,Negotiable

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model NO.:

PF-AF27Y

Frequency:

700-1000MHz

Power:

40W

Operating Voltage:

24-28V

Current:

3000mA±500

RF Interface:

SMA

RF Interface Impedance:

50Ω

Packing Size:

140*54*20mm

Temperature:

-40ºC+80ºC

Material:

Aluminum

Single Package Size:

15.5X6X3 Cm

Single Gross Weight:

0.250 Kg

Transport Package:

Carton

Specification:

38*112*19.5mm

Trademark:

Origin:

China

Packaging Details:

Standard Package

Supply Ability:

10000 Sets / Month

Product Description

Padi Fly main business includes UAV detector module, handheld detection, backpack detection, vehicle detection, UAV accessories, etc.

Specification

About this productIncludes generated contents
High Power and Frequency Range: This anti FPV digital modulation power amplifier module operates within a wide frequency range of 700-1000 MHz, ensuring reliable communication in various environments.
Robust Construction: Made from durable aluminum, this module is built to withstand harsh conditions, with a temperature range of -40°C to +80°C.
High Power Output: With a power output of 40W, this module is ideal for applications requiring strong signal transmission.
Wide Operating Voltage: The module can operate within a wide voltage range of 24-28V, accommodating various power supply requirements.
User-friendly Interface: The SMA RF interface with 50 ohm impedance makes it easy to integrate with other devices, providing a seamless user experience for users like you.

Product Overview

Place of Origin

Guangdong, China

Name

Anti FPV Module

Frequency

700-1000mhz

Power

40W

Operating Voltage

24-28V

Current

3000mA±500

RF interface

SMA

RF interface impedance

50Ω

Size

140*54*20mm

Temperature

-40ºC+80ºC

Material

Aluminum

Test Item		indicator	Remark
Frequency Range		700-1000mhz	Built-in interference source
Working Voltage		28V	24-28V
Max Output Power		47dBm	1.5G 50W
Working Efficiency		≥60%
Gain		47dbi	peak-to-peak value
Passband Riplpe		≤2dB	peak-to-peak value
High-Low Temperature Test	Working Temperature(ºC)	-10~+55ºC	It can start at low temperatures
	Gain Stability	±1.5 @-40ºC~+55ºC
	Power Stability	±1.5 @-40ºC~+55ºC
Power supply requirements		≥3.7A	Continuous wave output 50W
Power supply interface			Red + and black -
Enable			White line high level on, low level off
RF Connector		SMA	SMA external screw base
Size		37.311219.5mm	Excluding SMA
Weight		160g

Wide Band Ati Drone 700-1000MHz 40W Anti Fpv Digital Modulation Power Amplifier Module Lora Module 7

Padi Fly Technology Co. Ltd specializes in the field of advanced technology.

Our company is located in the vibrantcity of Shenzhen,known as a hub of innovation andtechnology in China.
With over 3000 square meters of plant space, we specialize in the design, development, and distribution of FPV drones along with drone countermeasure solution.
We are known for our innovation, quality, and commitment to enhancing the user experience.

Wide Band Ati Drone 700-1000MHz 40W Anti Fpv Digital Modulation Power Amplifier Module Lora Module 8

Our Business Range for FPV drone accessories:
We can provide include: Image transmission, motor, carbon fiber frame, flight control, electrical regulation, antenna, remote control, propeller, charger, etc..
We also provide the industry's professional OEM and ODM technology and services.

Wide Band Ati Drone 700-1000MHz 40W Anti Fpv Digital Modulation Power Amplifier Module Lora Module 12

Q:Why choose PDFLY?

A:1. From real factory: cheaper price, better quality, faster delivery.

2. Quality assurance: Ship after successful testing.

3. After-sales: Professional team to solve problems and technical support.

Q:How can we guarantee quality?

A:1.Always a pre-production sample before mass production;

2.Always final Inspection before shipment;

3.Professional sales staff will communicate with you to confirm every link

Q:What's the lead time?

A:Sample needs 3-7 days, mass production needs 7-10 days, according to your order requirements & volumes.

Q:How to place an order from you?

A:Please send the products you like to us and our professional sales will contact with you within 24 hours to confirm the details of the products and negotiate. After you confirm the order, we will guide you through payment and arrange delivery, tell you the tracking number and help track the logistics.

We look forward to your comments on our products and services.
