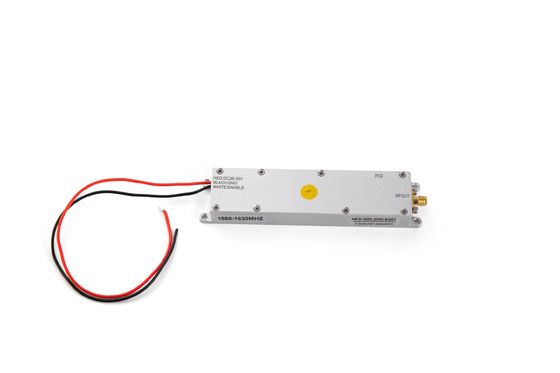

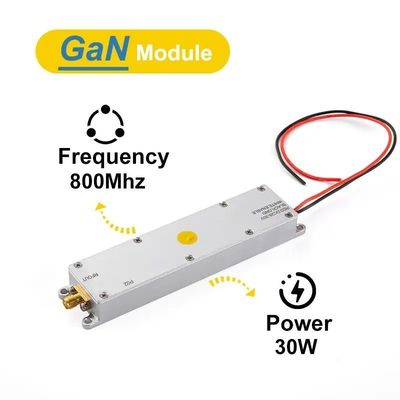

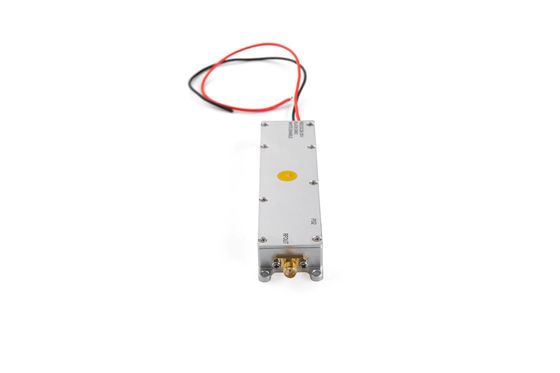

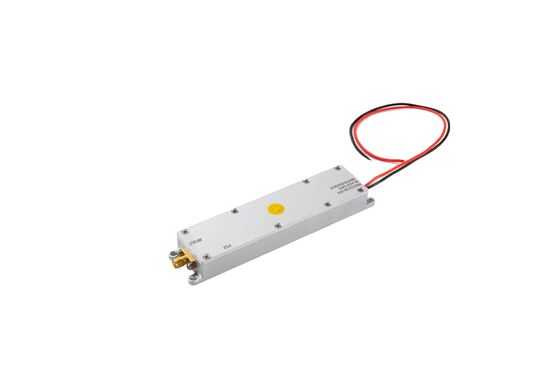

800MHz 720-840 MHz 700-1050MHz 30W GaN Anti-Module for Anti Drone System Autel Anti Fpv Mavic 3 Autel Fpv Ua Poland RF Amplifier Module

Brand Name:	Pdfy
MOQ:	1 piece
Price:	Negotiable
Payment Terms:	T/T, PayPal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model NO.:

PF-AM106

Type:

Drone Uav Protect Module

Support Network:

All

Information Content:

All

Product Name:

RF GaN Power Amplifier Module

Frequency:

800MHz

Output Power:

30W

Gain:

45±1dB

Voltage:

24-32V

Product Weight:

183G

Intra-Band Fluctuations:

≤2.5 (Peak-to-Peak Value)

In-Band Group Delay:

≤1us

Input Voltage Standing Wave Ratio:

≤1.35

Transport Package:

Carton

Specification:

37.3*112*19.5mm

Trademark:

Origin:

Guangdong, China

Product Description

Frequency	800Mhz
Output Power(dBm)	30W(50dBm)
In-band group delay	≤1us
Gain	45±1.0,45±1.0 (external input 6dbm, power amplifier output 50dbm)
In-band fluctuation (dB)	≤2.5 (peak-to-peak value)
Input voltage standing wave ratio	≤1.35
Output voltage standing wave ratio	≤1.3
Supply voltage Typical	+30Vdc Range: 24-36V
Supply current	+30Vdc@100W≤6.5A
Output RF connector	N-50KFD
Size	37.311219.5mm (excluding connectors)
Input signal source	Built-in high-efficiency modulation sweep signal source, which can also be connected to external sources
1 7W2 male socket 2 Feedthrough capacitors (from top to bottom)	1: A1 is the 30V power input, and A2 is GND; 2: The first pin of 7W2 is the PA_SW power amplifier enable; 3: The upper through-core capacitor is SRC_SW (internal signal source switch), high-on, low-off; 4: The feedthrough capacitor below is PS_SW (internal and external source switch), high: external source; low: built-in source;

Selling Units:	Single item
Single package size:	20X20X10 cm
Single gross weight:	0.3kg
Package Type:	Each piece is individually packed into a bag and then packed into a carton.

800MHz 720-840 MHz 700-1050MHz 30W GaN Anti-Module for Anti Drone System Autel Anti Fpv Mavic 3 Autel Fpv Ua Poland RF Amplifier Module

Welcome to Shenzhen Padi Flying Intelligent Technology Co., Ltd: Your Partner in Drone Security. We are a leading provider of comprehensive solutions in the anti-drone industry, dedicated to safeguarding airspace and critical infrastructure from unauthorized drone activity.

Why Choose Us:

Experience: With years of experience in the anti-drone industry, we have a proven track record of success.

Expertise: Our team consists of industry experts who are passionate about drone security and dedicated to providing the best solutions.

Trust: We have earned the trust of our clients through our commitment to quality, innovation, and exceptional customer service.

Choose Padi Flying Intelligent Tech Co., Ltd, we believe in a world where drone technology is used responsibly and safely. We invite you to explore our solutions and join us in

our mission to secure the skies
800MHz 720-840 MHz 700-1050MHz 30W GaN Anti-Module for Anti Drone System Autel Anti Fpv Mavic 3 Autel Fpv Ua Poland RF Amplifier Module

1.Question : Why choose us ?

Answer : We have 6 years experience on drone business and one stop solutions of drone , especially on security .

2.Question : What is the minimum order quantity(MOQ) ?
Answer : No quantity limited , sample order or small order is acceptable.

3.Question : Could you offer wholesale price ?
Answer : Supportive,and wholesale price is better.

4.Question : How long is your delivery time ?
Answer : Generally 1-3 working days if stock available . Or need extra 3 working days to prepare goods .

5.Question : What is your product quality ?
Answer : Our raw materials purchased from qualified suppliers . And we have very strict qc standard to assure our final products meet your requirements .

6.Question : Can you print my own logo on the products ?
Answer : Yes , logo,packing design and other oem services are available .
We will prepare artwork for visual confirmation , then sample confirm finally bulk production .

7.Question : What's the payment terms ?
Answer : T/T , Western union , Paypal , Alipay and so on.
