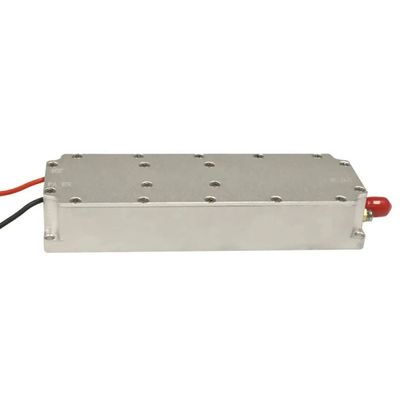

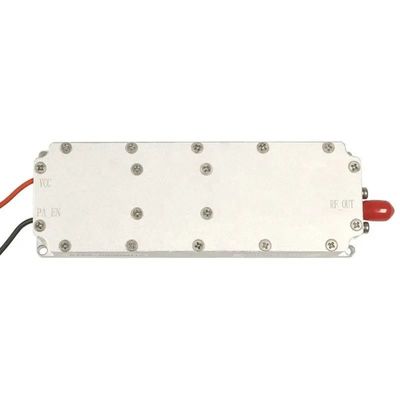

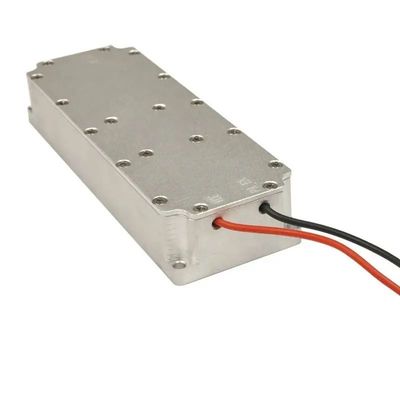

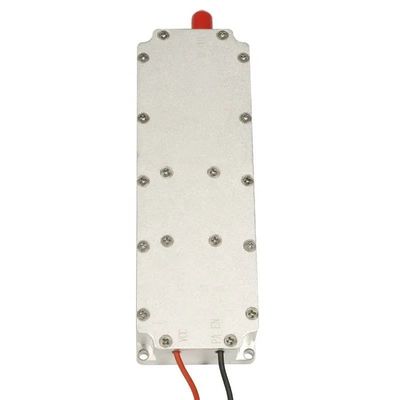

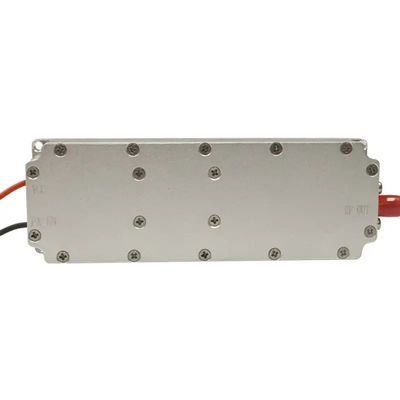

900-930MHz 40W GaN Anti Drone Module for Anti Drone System Autel Anti Fpv C-Uas Mavic 3 Autel Fpv Poland RF Module PA Module

900-930MHz 40W GaN Anti Drone Module for Anti Drone System Autel Anti Fpv C-Uas Mavic 3 Autel Fpv Poland RF Module PA Module

Brand Name:	OEM
MOQ:	1 Piece
Price:	Negotiable
Delivery Time:	1-3 Working Days
Payment Terms:	T/T,PayPal,Negotiable

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model NO.:

PF-AM093

Type:

Drone Detector Amplifier

Support Network:

All

Information Content:

All

Product Name:

RF GaN Power Amplifier Module

Frequency:

900-930MHz

Output Power:

40W

Gain:

47dBm

Voltage:

24-32V

Product Weight:

136g

Intra-Band Fluctuations:

≤2.5 (Peak-to-Peak Value)

In-Band Group Delay:

≤1us

Input Voltage Standing Wave Ratio:

≤1.35

Transport Package:

Carton

Specification:

37.3*112*19.5mm

Trademark:

Origin:

Guangdong, China

Packaging Details:

Standard Package

Supply Ability:

10000 Sets / Month

Product Description

Padi Fly main business includes UAV detector module, handheld detection, backpack detection, vehicle detection, UAV accessories, etc.

--GaN enables high efficiency and high output. The radio frequency and monitoring technical indicators of the power amplifier module stipulate the definition of each port of the module and the shape and structure of the module.

--The power amplifier uses domestic core key components and can operate normally at temperatures of -10~+55°C.

--This document stipulates the radio frequency and monitoring technical indicators of the 50W power amplifier module, the definition of each port of the module, the appearance and structure of the module, etc.

--This document applies to all aspects of product design, verification, production and quality inspection of the 50W power amplifier module.

Brand Name	PDFY
Working frequency	900-930Mhz
Power	40W
Supply Voltage	DC 24-32V
Max Output Power	47 dBm
Working Efficiency	≥60%
Passband Riplpe	≤2dB
Weight	105 g
Operating Temperature	-10~+55ºC
Power supply requirements	≥3.7A
RF Connector	SMA
Weight	136g
Size	37.311219.5mm (Excluding SMA)
Connect line red	DC28-30V
Connect line black	GND
Connect line white	ENABLE

900-930MHz 40W GaN Anti Drone Module for Anti Drone System Autel Anti Fpv C-Uas Mavic 3 Autel Fpv Poland RF Module PA Module 6

Padi Fly Technology Co. Ltd specializes in the field of advanced technology.

Our company is located in the vibrantcity of Shenzhen,known as a hub of innovation andtechnology in China.
With over 3000 square meters of plant space, we specialize in the design, development, and distribution of FPV drones along with drone countermeasure solution.
We are known for our innovation, quality, and commitment to enhancing the user experience.

900-930MHz 40W GaN Anti Drone Module for Anti Drone System Autel Anti Fpv C-Uas Mavic 3 Autel Fpv Poland RF Module PA Module 7

Our Business Range for FPV drone accessories:
We can provide include: Image transmission, motor, carbon fiber frame, flight control, electrical regulation, antenna, remote control, propeller, charger, etc..
We also provide the industry's professional OEM and ODM technology and services.

900-930MHz 40W GaN Anti Drone Module for Anti Drone System Autel Anti Fpv C-Uas Mavic 3 Autel Fpv Poland RF Module PA Module 11

Q:Why choose PDFLY?

A:1. From real factory: cheaper price, better quality, faster delivery.

2. Quality assurance: Ship after successful testing.

3. After-sales: Professional team to solve problems and technical support.

Q:How can we guarantee quality?

A:1.Always a pre-production sample before mass production;

2.Always final Inspection before shipment;

3.Professional sales staff will communicate with you to confirm every link

Q:What's the lead time?

A:Sample needs 3-7 days, mass production needs 7-10 days, according to your order requirements & volumes.

Q:How to place an order from you?

A:Please send the products you like to us and our professional sales will contact with you within 24 hours to confirm the details of the products and negotiate. After you confirm the order, we will guide you through payment and arrange delivery, tell you the tracking number and help track the logistics.

We look forward to your comments on our products and services.
