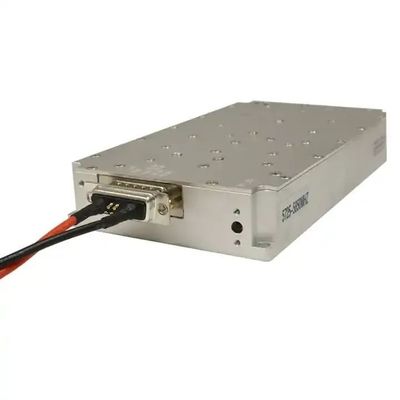

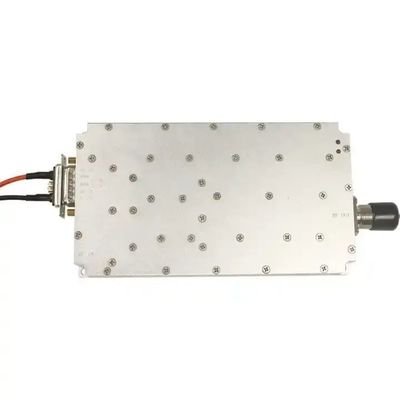

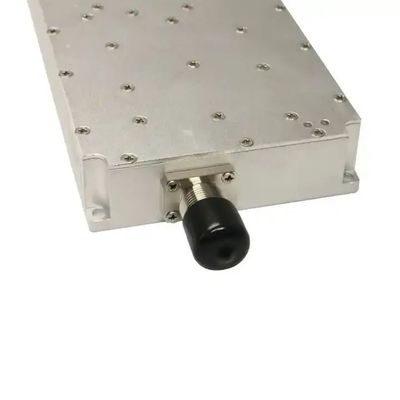

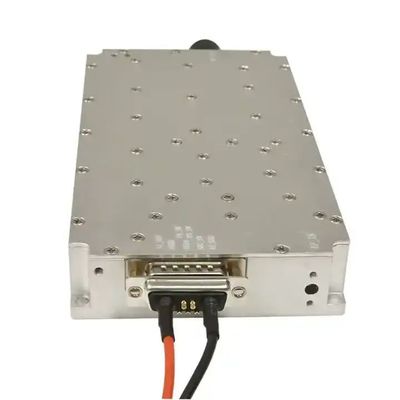

930-1020MHz 50W GaN Anti Drone Module for Anti Drone System Autel Anti Fpv C-Uas Mavic 3 Autel Fpv RF Module

930-1020MHz 50W GaN Anti Drone Module for Anti Drone System Autel Anti Fpv C-Uas Mavic 3 Autel Fpv RF Module

Brand Name:	OEM
MOQ:	1 Piece
Price:	Negotiable
Delivery Time:	1-3 Working Days
Payment Terms:	T/T,PayPal,Negotiable

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Model NO.:

PF-AM091

Condition:

New

Support Network:

All

Information Content:

All

Product Name:

RF GaN Power Amplifier Module

Frequency:

930-1020MHz

Output Power:

100W

Gain:

47dBm

Voltage:

24-32V

Product Weight:

183G

Intra-Band Fluctuations:

≤2.5 (Peak-to-Peak Value)

In-Band Group Delay:

≤1us

Input Voltage Standing Wave Ratio:

≤1.35

Transport Package:

Carton

Specification:

37.3*112*19.5mm

Trademark:

Origin:

Guangdong, China

Packaging Details:

Standard Package

Supply Ability:

10000 Sets / Month

Product Description

Padi Fly main business includes UAV detector module, handheld detection, backpack detection, vehicle detection, UAV accessories, etc.

Appearance and installation instructions:
1. Overall dimensions: 170*94*26.5mm
2. Interface form:

Power supply conditions: +30V power supply: 7W2 (male)
RF input interface: SMA-KFD (optional)
RF output interface: N-KFD
Control interface:
a.7W2 (male) socket: The first pin is connected to the power amplifier enable PA_SW (high level 5V/3.3V power amplifier turns on,low level or floating, the power amplifier turns off)
b.Feedthrough capacitor: From top to bottom, they are SRC_SW (internal signal source switch 5V/3.3V on, floating or grounded signal source off), PS_SW (internal and external signal source switch, low level is the built-in source, high level Level 5V/3.3V switch to external source)
3.Mounting hole diameter: Leave 4 Φ4.5mm through holes at the mounting holes for mounting M3 screws.

Brand Name	PDFY
Working frequency	930-1020MHz
Power	50W
Supply Voltage	DC 24-32V
Max Output Power	47 dBm
Working Efficiency	≥60%
Passband Riplpe	≤2dB
Weight	105 g
Operating Temperature	-10~+55ºC
Power supply requirements	≥3.7A
RF Connector	SMA
Weight	183g
Size	37.311219.5mm (Excluding SMA)
Connect line red	DC28-30V
Connect line black	GND
Connect line white	ENABLE

930-1020MHz 50W GaN Anti Drone Module for Anti Drone System Autel Anti Fpv C-Uas Mavic 3 Autel Fpv RF Module 6

Padi Fly Technology Co. Ltd specializes in the field of advanced technology.

Our company is located in the vibrantcity of Shenzhen,known as a hub of innovation andtechnology in China.
With over 3000 square meters of plant space, we specialize in the design, development, and distribution of FPV drones along with drone countermeasure solution.
We are known for our innovation, quality, and commitment to enhancing the user experience.

930-1020MHz 50W GaN Anti Drone Module for Anti Drone System Autel Anti Fpv C-Uas Mavic 3 Autel Fpv RF Module 7

Our Business Range for FPV drone accessories:
We can provide include: Image transmission, motor, carbon fiber frame, flight control, electrical regulation, antenna, remote control, propeller, charger, etc..
We also provide the industry's professional OEM and ODM technology and services.

930-1020MHz 50W GaN Anti Drone Module for Anti Drone System Autel Anti Fpv C-Uas Mavic 3 Autel Fpv RF Module 11

Q:Why choose PDFLY?

A:1. From real factory: cheaper price, better quality, faster delivery.

2. Quality assurance: Ship after successful testing.

3. After-sales: Professional team to solve problems and technical support.

Q:How can we guarantee quality?

A:1.Always a pre-production sample before mass production;

2.Always final Inspection before shipment;

3.Professional sales staff will communicate with you to confirm every link

Q:What's the lead time?

A:Sample needs 3-7 days, mass production needs 7-10 days, according to your order requirements & volumes.

Q:How to place an order from you?

A:Please send the products you like to us and our professional sales will contact with you within 24 hours to confirm the details of the products and negotiate. After you confirm the order, we will guide you through payment and arrange delivery, tell you the tracking number and help track the logistics.

We look forward to your comments on our products and services.
