Anti Drone Module
Created with Pixso. 100W RF Power Amplifier Module for Anti Drone System

100W RF Power Amplifier Module for Anti Drone System

Brand Name: OEM
MOQ: 1 Piece
Price: Negotiable
Delivery Time: 1-3 Working Days
Payment Terms: T/T,PayPal,Negotiable
Detail Information
Place of Origin:
China
Certification:
ISO, RoHS
Model NO.:
PF-MO014A
Support Network:
All
Information Content:
All
Condition:
New
Frequency:
5100-5900MHz/Customized
Power Supply:
100W/Customized
Saturated Output Power:
47±1dBm @Input=3~5dBm
Vswr:
1.5dBi
Supply Current:
8-10A
Working Voltage:
DC+32V
Temperature Protection(Warn):
Temperature Protection 90 Degrees(See Pin8)
Weightvswr Vswr Protection(Warn):
Reverse Power 15W Protection
Weight:
350g
Dimensions:
77*180.6*24.5mm
Price:
$1, 300.00/Cases 1-49 Cases
Delivery Time:
5-8 Workdays
Supply Ability:
5000PCS Per Month
Transport Package:
Carton
Specification:
170*77*24mm
Trademark:
PADIFLY/OEM
Origin:
China
Package Size:
30.00cm * 20.00cm * 10.00cm
Package Gross Weight:
0.500kg
Packaging Details:
Standard Package
Supply Ability:
10000 Sets / Month
Highlight:
Fpv Equipment RF Power Amplifier Module, 50W RF Po
Product Description

100W RF Power Amplifier Module for Anti Drone System 0
Padi Fly main business includes UAV detector module, handheld detection, backpack detection, vehicle detection, UAV accessories, etc.


Product Description


100W RF Power Amplifier Module For FPV Autel Dji Boost FPV Range And Signal Strength
100W RF Power Amplifier Module for Anti Drone System 1
Product Parameters


Frequency
5100-5900mhz
Power supply
100W
Saturated output power
50±1dBm @input=5dbm
Gain
50±2dB
In-band fluctuation
≤2.0dB
Out-of-band spurious
9kHz~1GHz:≤-36dBm/30kHz
1GHz~12.75GHz:≤-30dBm/30KHz
Input VSWR/Out VSWR
≤2
Gain temperature stability
≤±1.5dB
Working voltage
DC+32V
Protection
Temperature protection 90 degrees,Reverse Power 30W protection
Working current
≤10.5A
Power supply monitoring interface
Power supply: Perform capacitive

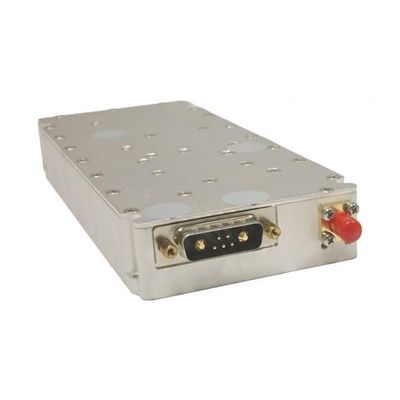

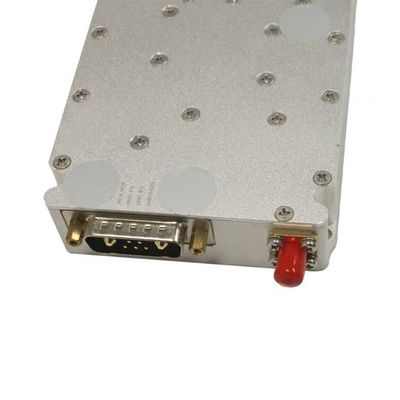

Pin1:485A Pin2:NC Pin3: GND Pin4: NC Pin5: PA_EN(High power on, Low level off) Pin6: NC Pin7: NC Pin8: 485B
Iinput RF port
SMA

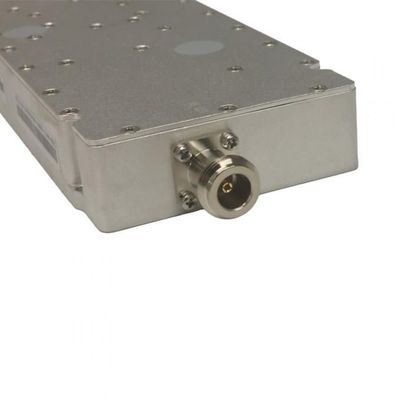

Output RF port
N-F
Dimensions
77*180.6*24.5mm
Working temperature
-20~+55ºC

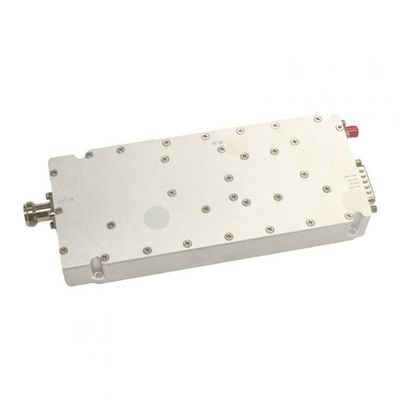

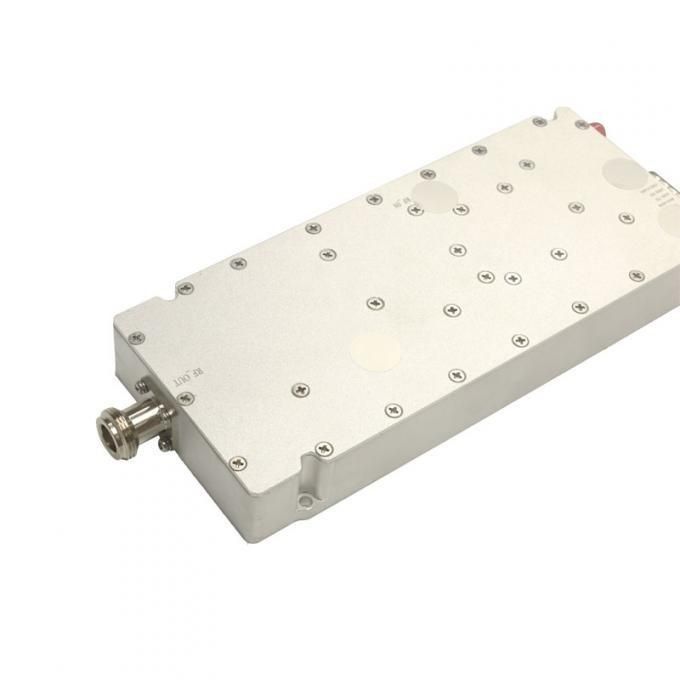

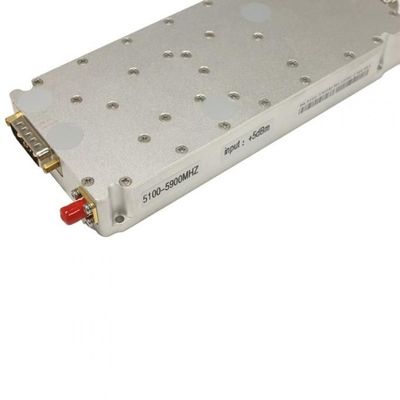

Detailed Photos

100W RF Power Amplifier Module for Anti Drone System 2100W RF Power Amplifier Module for Anti Drone System 3100W RF Power Amplifier Module for Anti Drone System 4100W RF Power Amplifier Module for Anti Drone System 5100W RF Power Amplifier Module for Anti Drone System 6100W RF Power Amplifier Module for Anti Drone System 7

Company Profile


100W RF Power Amplifier Module for Anti Drone System 8

Padi Fly Technology Co. Ltd specializes in the field of advanced technology.

Our company is located in the vibrantcity of Shenzhen,known as a hub of innovation andtechnology in China.
With over 3000 square meters of plant space, we specialize in the design, development, and distribution of FPV drones along with drone countermeasure solution.
We are known for our innovation, quality, and commitment to enhancing the user experience.

100W RF Power Amplifier Module for Anti Drone System 9100W RF Power Amplifier Module for Anti Drone System 10100W RF Power Amplifier Module for Anti Drone System 11100W RF Power Amplifier Module for Anti Drone System 12

Our Business Range for FPV drone accessories:
We can provide include: Image transmission, motor, carbon fiber frame, flight control, electrical regulation, antenna, remote control, propeller, charger, etc..

We also provide the industry's professional OEM and ODM technology and services.


Packaging & Shipping


100W RF Power Amplifier Module for Anti Drone System 13


FAQ
Q:Why choose PDFLY?
A:1. From real factory: cheaper price, better quality, faster delivery.
2. Quality assurance: Ship after successful testing.
3. After-sales: Professional team to solve problems and technical support.

Q:How can we guarantee quality?
A:1.Always a pre-production sample before mass production;
2.Always final Inspection before shipment;
3.Professional sales staff will communicate with you to confirm every link

Q:What's the lead time?
A:Sample needs 3-7 days, mass production needs 7-10 days, according to your order requirements & volumes.

Q:How to place an order from you?
A:Please send the products you like to us and our professional sales will contact with you within 24 hours to confirm the details of the products and negotiate. After you confirm the order, we will guide you through payment and arrange delivery, tell you the tracking number and help track the logistics.

We look forward to your comments on our products and services.
