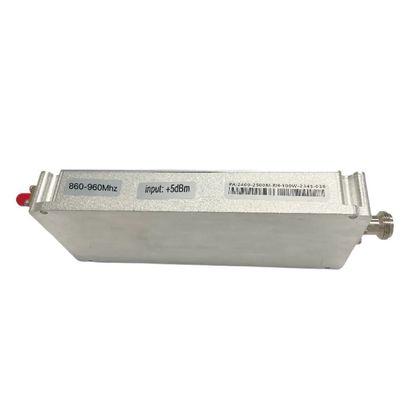

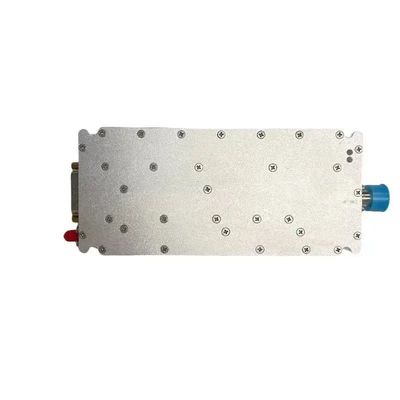

860-960MHz 100W RF PA Module Without Signal Source For Fpv Autel Dji Equipment

MOQ:	1 piece
Price:	Negotiable
Payment Terms:	T/T, PayPal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model NO.:

PF-AM025

Condition:

New

Type:

RF Power Amplifier Module

Support Network:

All

Information Content:

All

Frequency:

2280-2600MHz

Power Supply:

100W

Power Flatness:

5 DBi

Vswr Protection:

Alarm Indication, High-Level Protection

Supply Ability:

<8.5A

Input Connect:

SMA

Output Connect:

N-Type

Weight:

350g

Operating Temperature:

-20ºC-55ºC

Transport Package:

Carton

Specification:

170*77*24mm

Trademark:

Origin:

China

Highlight:

100W RF PA Module

960MHz RF PA Module

100W rf amplifier module

Product Description

860-960MHz 100W RF Power Amplifier Module Without Signal Source for Fpv Autel Dji Equipment with Temperature and Vswr Protection

Brand	PDFY
Frequency	860-960mhz
Power supply	100W
Saturated output power	50±1dBm @input=5dbm
Gain	50±2dB
In-band fluctuation	≤2.0dB
Out-of-band spurious	9kHz~1GHz:≤-36dBm/30kHz 1GHz~12.75GHz:≤-30dBm/30KHz
Input VSWR/Out VSWR	≤2
Gain temperature stability	≤±1.5dB
Working voltage	DC+32V
Protection	Temperature protection 90 degrees,Reverse Power 30W protection
Working current	≤8.5A

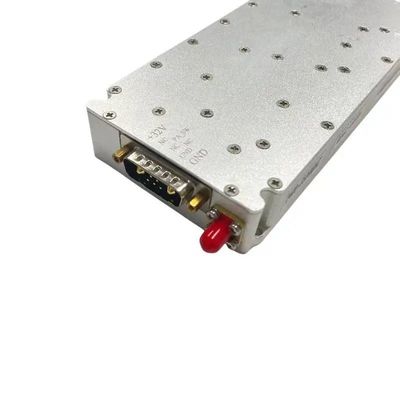

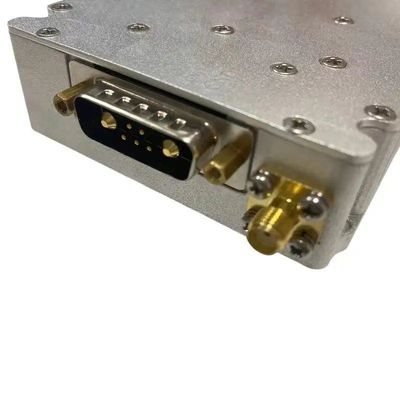

Power supply monitoring interface	Power supply: 7W2 power seat A1:32V A2:GND Pin1: PA_SW (High power on, Low level off) Other pins:NC
Iinput RF port	SMA

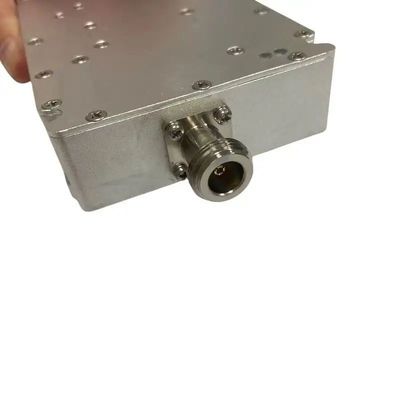

Output RF port	N-F

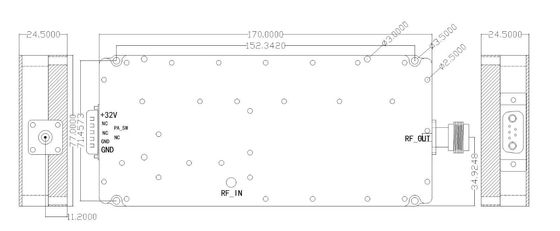

Dimensions	1707724.5mm
Working temperature	-20~+55ºC

Welcome to Shenzhen Padi Flying Intelligent Technology Co., Ltd: Your Partner in Drone Security. We are a leading provider of comprehensive solutions in the anti-drone industry, dedicated to safeguarding airspace and critical infrastructure from unauthorized drone activity.

Why Choose Us:

Experience: With years of experience in the anti-drone industry, we have a proven track record of success.

Expertise: Our team consists of industry experts who are passionate about drone security and dedicated to providing the best solutions.

Trust: We have earned the trust of our clients through our commitment to quality, innovation, and exceptional customer service.

Choose Padi Flying Intelligent Tech Co., Ltd, we believe in a world where drone technology is used responsibly and safely. We invite you to explore our solutions and join us in

our mission to secure the skies

1.Question : Why choose us ?
Answer : We have 6 years experience on drone business and one stop solutions of drone , especially on security .

2.Question : What is the minimum order quantity(MOQ) ?
Answer : No quantity limited , sample order or small order is acceptable.

3.Question : Could you offer wholesale price ?
Answer : Supportive,and wholesale price is better.

4.Question : How long is your delivery time ?
Answer : Generally 1-3 working days if stock available . Or need extra 3 working days to prepare goods .

5.Question : What is your product quality ?
Answer : Our raw materials purchased from qualified suppliers . And we have very strict qc standard to assure our final products meet your requirements .

6.Question : Can you print my own logo on the products ?
Answer : Yes , logo,packing design and other oem services are available .
We will prepare artwork for visual confirmation , then sample confirm finally bulk production .

7.Question : What's the payment terms ?
Answer : T/T , Western union , Paypal , Alipay and so on.
