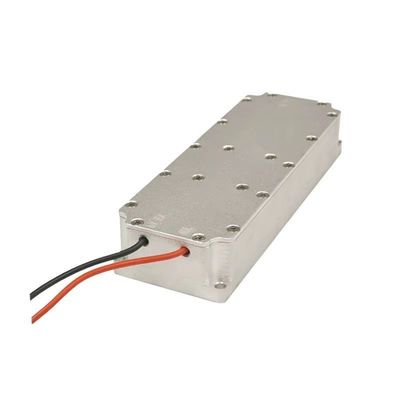

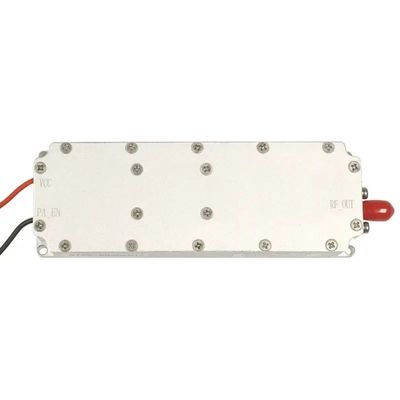

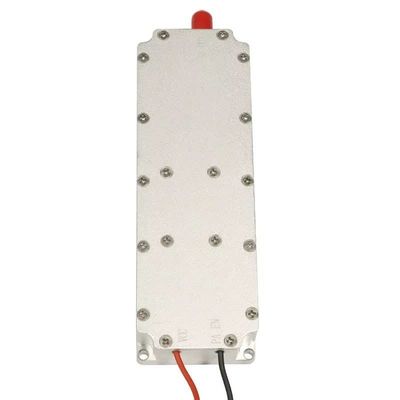

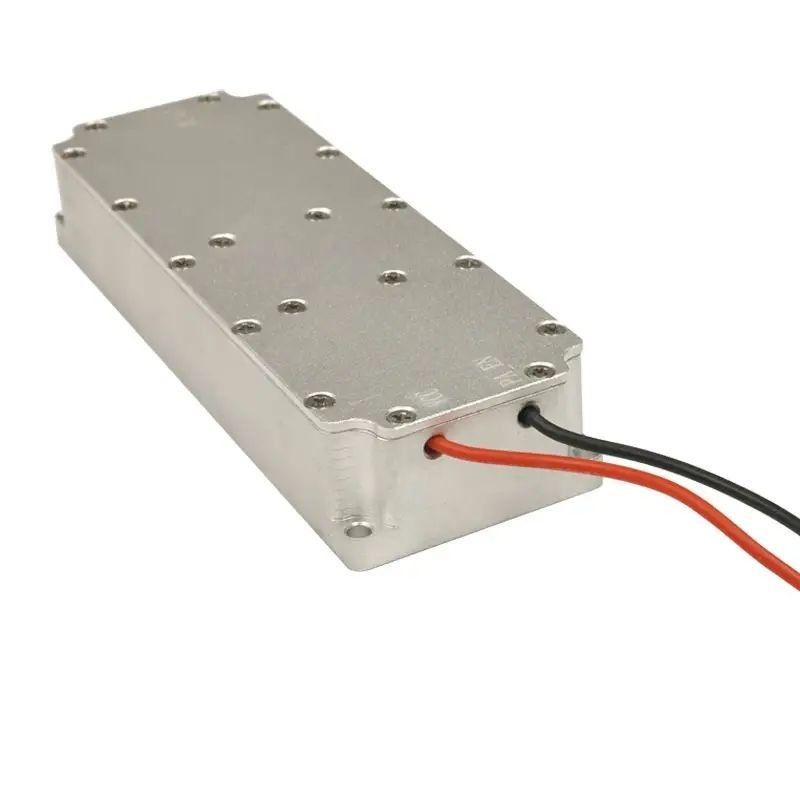

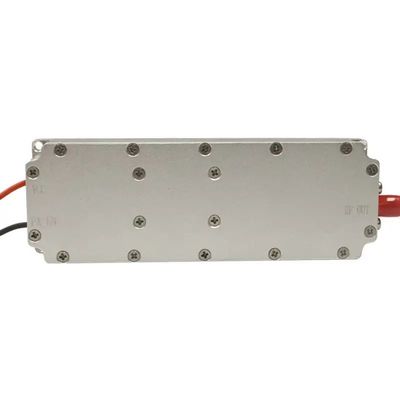

Compact 47dBm RF PA Module Drone Jammer Module 1164-1250MHz 24V-28V

Compact 47dBm RF PA Module Drone Jammer Module 1164-1250MHz 24V-28V

Brand Name:	OEM
MOQ:	1 Piece
Price:	Negotiable
Delivery Time:	1-3 Working Days
Payment Terms:	T/T,PayPal,Negotiable

Detail Information

Product Description

Detail Information

Place of Origin:

China

Frequency Range:

1.5g(1164-1250MHz)

Max Gain:

50 DBm

Operating Voltage:

24V-28V

Supply Voltage:

DC 24-28V

RF Interface:

N Type

Operating Temperature:

-20ºC-80ºC

Model NO.:

PF-MD26Y

Weight:

160 G

Input/Output Vswr:

1.5dB

Special:

GaN Module Anti Fpv

Power:

50W(47dBm)

Transport Package:

Carton

Specification:

38*112*19.5mm

Trademark:

Origin:

China

Packaging Details:

Standard Package

Supply Ability:

10000 Sets / Month

Highlight:

Compact RF PA Module

47dBm RF PA Module

47dBm Drone Jammer Module

Product Description

Padi Fly main business includes UAV detector module, handheld detection, backpack detection, vehicle detection, UAV accessories, etc.

RF Module Anti Drone Jammer Module

Specification

1.The power amplifier uses domestic core key components and can operate normally at low temperatures of -40°C.
2.This document stipulates the radio frequency and monitoring technical indicators of the 1.2G 50W power amplifier module, the definition of each port of the module, the appearance and structure of the module, etc.
3.This document applies to all aspects of product design, verification, production and quality inspection of the 1.2G 50W power amplifier module.

Test Item		indicator	Remark
Frequency Range		1.5Ghz	Built-in interference source
Working Voltage		30V	24-32V
Max Output Power		47dBm	1.5G 50W
Working Efficiency		≥60%
Gain		47dbi	peak-to-peak value
Passband Riplpe		≤2dB	peak-to-peak value
High-Low Temperature Test	Working Temperature(ºC)	-10~+55ºC	It can start at low temperatures
	Gain Stability	±1.5 @-40ºC~+55ºC
	Power Stability	±1.5 @-40ºC~+55ºC
Power supply requirements		≥3.7A	Continuous wave output 50W
Power supply interface			Red + and black -
Enable			White line high level on, low level off
RF Connector		SMA	SMA external screw base
Size		37.311219.5mm	Excluding SMA
Weight		160g

Compact 47dBm RF PA Module Drone Jammer Module 1164-1250MHz 24V-28V 7

Padi Fly Technology Co. Ltd specializes in the field of advanced technology.

Our company is located in the vibrantcity of Shenzhen,known as a hub of innovation andtechnology in China.
With over 3000 square meters of plant space, we specialize in the design, development, and distribution of FPV drones along with drone countermeasure solution.
We are known for our innovation, quality, and commitment to enhancing the user experience.

Our Business Range for FPV drone accessories:
We can provide include: Image transmission, motor, carbon fiber frame, flight control, electrical regulation, antenna, remote control, propeller, charger, etc..
We also provide the industry's professional OEM and ODM technology and services.

Compact 47dBm RF PA Module Drone Jammer Module 1164-1250MHz 24V-28V 12

Q:Why choose PDFLY?

A:1. From real factory: cheaper price, better quality, faster delivery.

2. Quality assurance: Ship after successful testing.

3. After-sales: Professional team to solve problems and technical support.

Q:How can we guarantee quality?

A:1.Always a pre-production sample before mass production;

2.Always final Inspection before shipment;

3.Professional sales staff will communicate with you to confirm every link

Q:What's the lead time?

A:Sample needs 3-7 days, mass production needs 7-10 days, according to your order requirements & volumes.

Q:How to place an order from you?

A:Please send the products you like to us and our professional sales will contact with you within 24 hours to confirm the details of the products and negotiate. After you confirm the order, we will guide you through payment and arrange delivery, tell you the tracking number and help track the logistics.

We look forward to your comments on our products and services.
