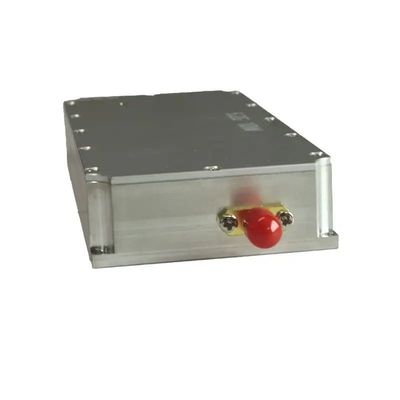

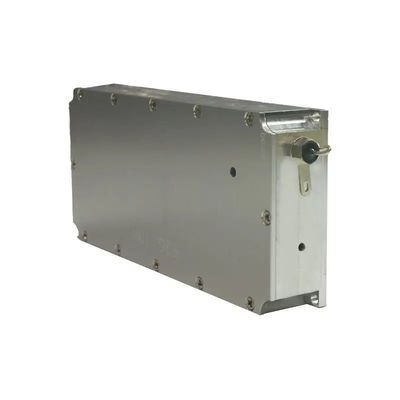

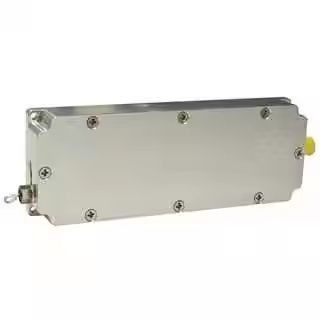

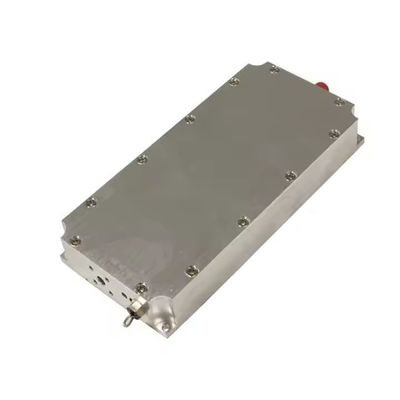

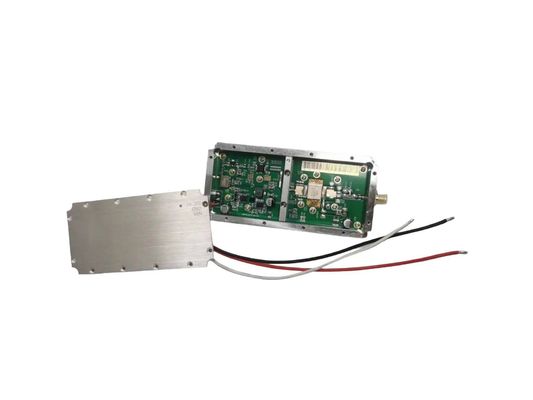

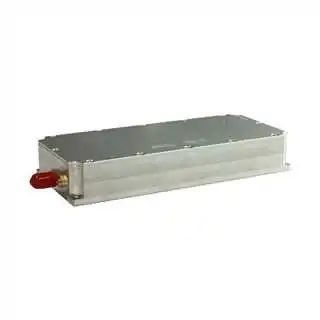

433MHz 40W 50W High Power Drone Jamming Module For Autel Mavic 3 Fpv C-Uas

433MHz 40W 50W High Power Drone Jamming Module For Autel Mavic 3 Fpv C-Uas

Brand Name:	OEM
MOQ:	1 Piece
Price:	Negotiable
Delivery Time:	1-3 Working Days
Payment Terms:	T/T,PayPal,Negotiable

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model NO.:

PF-AM088

Condition:

New

Type:

Drone Uav Protect Module

Support Network:

All

Information Content:

All

Product Name:

Anti Drone Module

Frequency:

433MHz(Support Customization)

Output Power:

40W, 50W

Gain:

≤3.4A

Voltage:

24-32V

Product Weight:

136g

Frequency Range:

428MHz-438MHz(Support Customization)

Transport Package:

Carton

Specification:

38*112*19.5mm

Trademark:

Origin:

Guangdong, China

Packaging Details:

Standard Package

Supply Ability:

10000 Sets / Month

Highlight:

High Power Drone Jamming Module

40W Drone Jamming Module

433MHz FPV Jammer Module

Product Description

Padi Fly main business includes UAV detector module, handheld detection, backpack detection, vehicle detection, UAV accessories, etc.

433MHz 40W 50W High Power RF Anti Drone Modules Incorporate State of The Art GaN for Autel Mavic 3 Fpv C-Uas

GaN transistors are more efficient.

The efficiency minus the driver (heating power consumption) is about 55-65%.

In fact, the working efficiency over 2.4G is 52%, and the working efficiency below 2.4G is 55%.

However, the working efficiency of LDMOS modules is only 45%-55%, so GaN modules consume less power and generate heat slowly.
--GaN enables high efficiency and high output. The radio frequency and monitoring technical indicators of the power amplifier module stipulate the definition of each port of the module and the shape and structure of the module.

--We provide broadband and band specific, high power RF and microwave amplifier solutions to OEM

Brand Name	PDFY
Working frequency	433MHz
Saturated output power	45±1dBm
Gain	42±2dB
In-band fluctuation	≤2.0dB
Out-of-band spurious	9kHz~1GHz:≤-36dBm/30kHz 1GHz~12.75GHz:≤-30dBm/30KHz
Input VSWR	≤1.5
Gain temperature stability	≤±1.5dB
Working voltage	DC+28V
Power supply monitoring interface	Power supply and power amplifier enabling: through the heart capacitor
Output RF port	SMA
Dimensions	3811219.5mm
Working temperature	-20~+55ºC

433MHz 40W 50W High Power Drone Jamming Module For Autel Mavic 3 Fpv C-Uas 6

Padi Fly Technology Co. Ltd specializes in the field of advanced technology.

Our company is located in the vibrantcity of Shenzhen,known as a hub of innovation andtechnology in China.
With over 3000 square meters of plant space, we specialize in the design, development, and distribution of FPV drones along with drone countermeasure solution.
We are known for our innovation, quality, and commitment to enhancing the user experience.

433MHz 40W 50W High Power Drone Jamming Module For Autel Mavic 3 Fpv C-Uas 7

Our Business Range for FPV drone accessories:
We can provide include: Image transmission, motor, carbon fiber frame, flight control, electrical regulation, antenna, remote control, propeller, charger, etc..
We also provide the industry's professional OEM and ODM technology and services.

433MHz 40W 50W High Power Drone Jamming Module For Autel Mavic 3 Fpv C-Uas 11

Q:Why choose PDFLY?

A:1. From real factory: cheaper price, better quality, faster delivery.

2. Quality assurance: Ship after successful testing.

3. After-sales: Professional team to solve problems and technical support.

Q:How can we guarantee quality?

A:1.Always a pre-production sample before mass production;

2.Always final Inspection before shipment;

3.Professional sales staff will communicate with you to confirm every link

Q:What's the lead time?

A:Sample needs 3-7 days, mass production needs 7-10 days, according to your order requirements & volumes.

Q:How to place an order from you?

A:Please send the products you like to us and our professional sales will contact with you within 24 hours to confirm the details of the products and negotiate. After you confirm the order, we will guide you through payment and arrange delivery, tell you the tracking number and help track the logistics.

We look forward to your comments on our products and services.
